Abstract

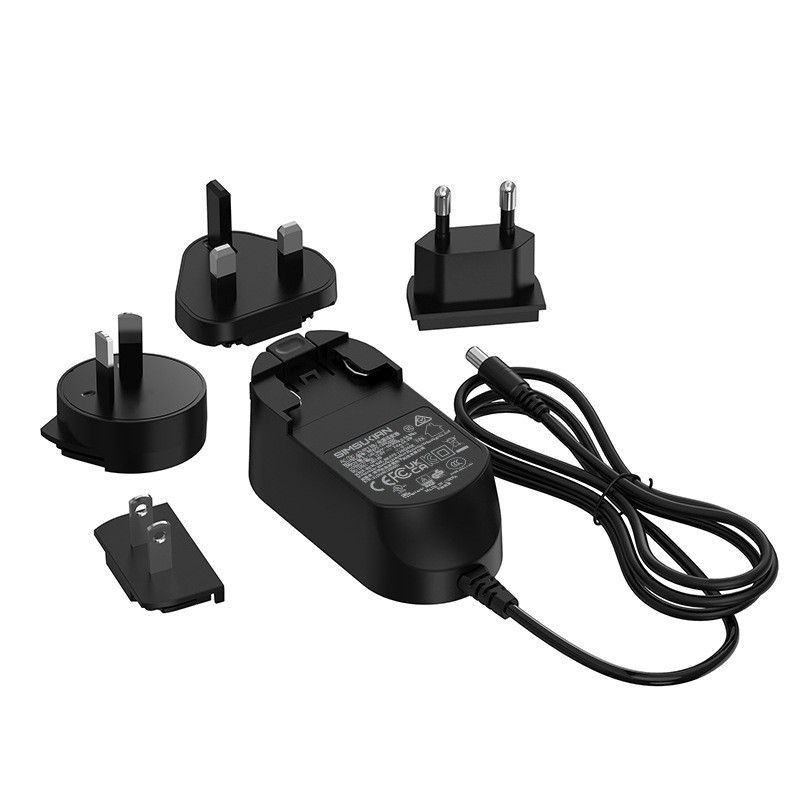

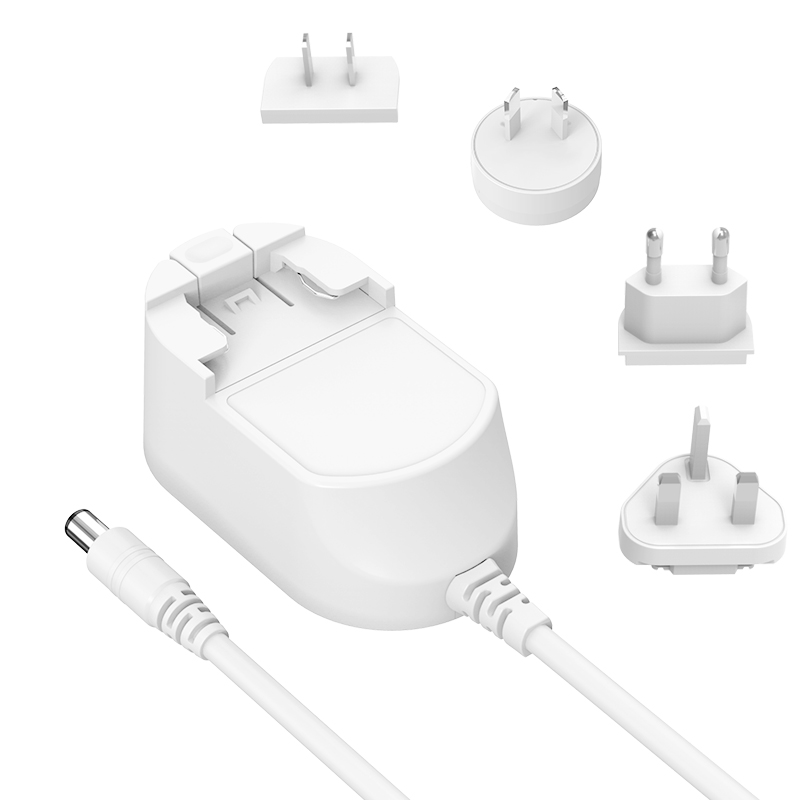

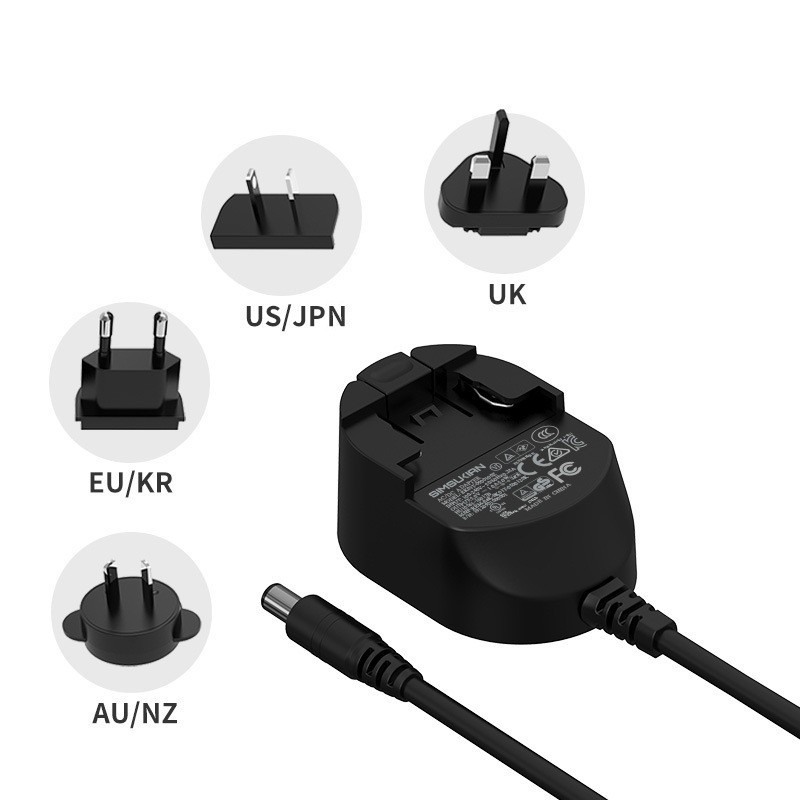

A portable medical instrument relies on an interchangeable plug power adapter for safe supply. After plug swap, the interchangeable plug power adapter retains 2MOPP isolation and low leakage. The interchangeable plug power adapter uses anti-misplug locking to protect patients on site.

1. Medical Isolation and Leakage Indicators

Medical-grade interchangeable plug power adapter meets 2MOPP double isolation with 4000VAC input-output hipot rating. The interchangeable plug power adapter keeps patient leakage under 100μA and enclosure leakage below 0.5mA to prevent current flowing through the body. Ordinary interchangeable plug power adapter built only to ITE standards can exceed leakage limits once the insulation path changes after plug swap; medical projects must retest leakage on every plug configuration.

2. Anti-Misplug Locking Mechanism

Medical settings cannot allow energizing with an improperly seated plug, so this interchangeable plug power adapter uses a fool-proof structure that blocks forced fitting of wrong pins. The interchangeable plug power adapter closes internal contacts only when the pin clicks into the locked position, and no circuit conducts while unlocked. This prevents rushed assembly with mismatched pins from breaking insulation of the interchangeable plug power adapter and creating shock hazard.

3. Continuous Load and Protection Parameters

The interchangeable plug power adapter supports 24/7 continuous operation at a 0.75 derating factor to limit component temperature rise. The interchangeable plug power adapter integrates hiccup-mode OVP, OCP, SCP and OTP with automatic recovery after fault removal. Protection thresholds of the interchangeable plug power adapter stay identical no matter which plug is installed, so medical devices apply unified fault diagnosis and repair logic across plug variants.

4. Environment and Flame-Retardant Housing

Housing of the interchangeable plug power adapter uses V-0 flame-retardant material, operating from 0℃ to +50℃, storing from -20℃ to +85℃ at 5%–90% non-condensing humidity. PCB of the interchangeable plug power adapter carries conformal coating that resists disinfectant vapor corrosion. As portable medical devices move across regions with varying climate, the interchangeable plug power adapter must pass thermal cycling and damp-heat aging on every plug combination to prove long-term stability.

Conclusion

For portable medical devices, verify leakage and anti-misplug locking on every plug variant of the interchangeable plug power adapter. Contact Simsukian for medical-grade interchangeable plug power adapter proposals, pre-compliance testing and sample evaluation; the interchangeable plug power adapter supports leakage retest on every plug variant.

References

1. IEC 60601-1 General safety and essential performance of medical electrical equipment

2. IEC 62368-1 Audio/video, information and communication technology equipment safety

3. IEC 60884-1 Plugs and socket-outlets for household and similar purposes
