7.5W interchangeable power adapter-SK01G

WhatsApp: +86 15361658306
Phone: +86 15361658306
E-mail: gpe@simsukian.com
Price: Price Negotiable

Overview

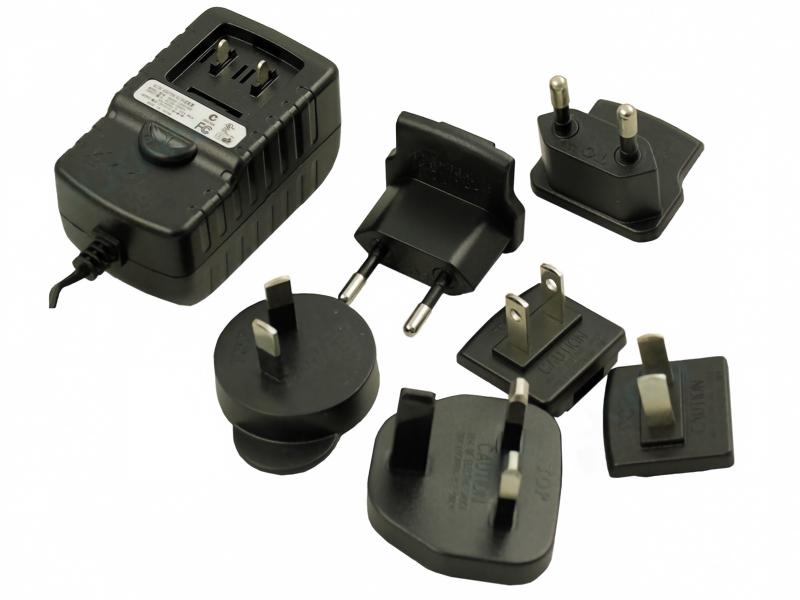

7.5W interchangeable power adapter with replaceable multi-country plugs, 100-240V wide voltage input and Level VI energy efficiency. Built-in multiple protections against overvoltage, overcurrent and short circuit for stable output. Lightweight design, suitable for LEDs, security devices and small home appliances. Customizable parameters for power supply exports to multiple countries

产品介绍

power adapterFeatures:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.2A Max;Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)

power adapter

ModelI/P ConditionOutput(V)Output(A)Output(W)max
SK01G-XXXXYYYW
2.8-6.0V0.1-1.5A7.5W
SK01G-XXXXYYYW100-6.1-8.9V0.1-1.23A7.5W
SK01G-XXXXYYYW240VAC9.0-11.9V0.1-0.83A7.5W
SK01G-XXXXYYYW0.2A Max12.0-14.9V0.1-0.63A7.5W
SK01G-XXXXYYYW50/60Hz15.0V-18.9V0.1-0.50A7.5W
SK01G-XXXXYYYW
19.0-24.0V0.1-0.39A7.5W

power adapter
