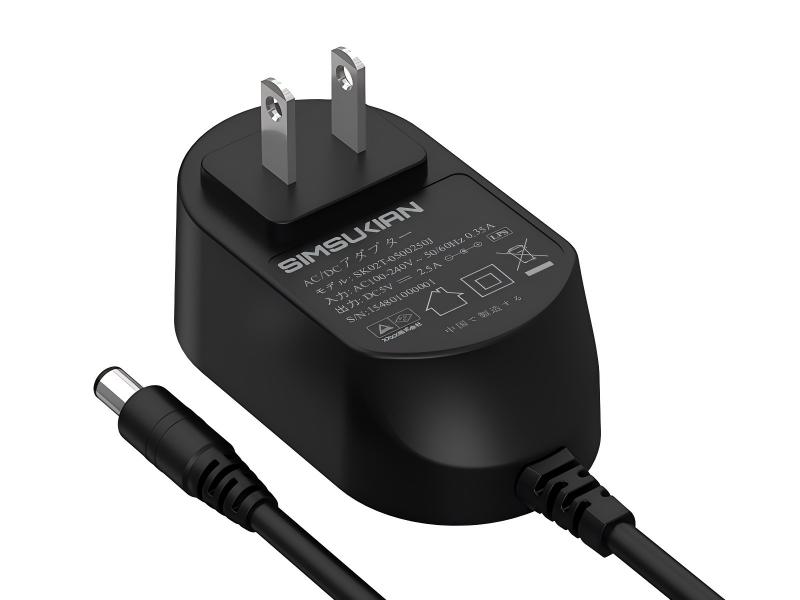

18W PSE adapter-SK02T

This 18W Japanese adapter‑SK02T is a compact 18W Japanese adapter with ultra‑small, lightweight fully‑sealed design for portability. This 18W Japanese adapter features 100‑240VAC universal input, CC/CV high‑precision low‑noise output and built‑in over‑voltage, over‑current, short‑circuit protection. Compliant with ERP/CEC‑VI, Japanese safety specs and PSE, it uses natural cooling with 50000‑hour MTBF for reliable, cost‑effective power for Japanese‑market devices.

18W PSE Japanese adapter-SK02T Features:

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;

2). Competitive price design, high reliability,ultraonic lamination;

3). Built-in over voltage, over current and short circuit protection;

4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.35A Max;

Starting Time:3s max;Inrush Current20A/240VAC Max

5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;

6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;

Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;

7). Cooling mode: natural cooling;

8). Energy efficiency accordingly: ERP / CEC-VI standard;

9). Safety standards: IEC60950-1, J60950-1(H22), J55022(H22), J3000(H21);

10).Meet ROHS standards;

11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;

12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
