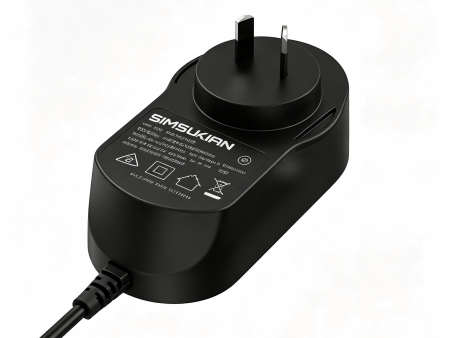

15W Lighting Power Adapter - SK01HB-001
| WhatsApp： | +86 15361658306 |
|---|---|
| Phone： | +86 15361658306 |
| E-mail： | gpe@simsukian.com |
| Price： | Price Negotiable |
|
Overview
This 15W lighting adapter is compact, lightweight and fully sealed. Its side plug saves socket space. Built-in OVP/OCP/short-circuit protection. It supports 200–240VAC input with stable precise low-noise CV/CC output. Featuring dual patents, natural cooling, IEC/EN61347, GB19510, RoHS/REACH, CCC, CE and 50,000h MTBF.
产品介绍
Product Features of 15W Lighting Power Adapter - SK01HB-001:
1.Compact size, light weight, streamlined shape, fully sealed, easy to carry; side plug design without occupying socket space.
2.Excellent cost performance and high reliability.
3.Built-in overvoltage, overcurrent and short-circuit protection.
4.Input characteristic: Voltage: 200-240VAC±10%.
5.Frequency: 50/60Hz.
6.Input current: 0.7A Max.
7.Startup time: 3s Max.
8.Inrush current at startup: 50A/240VAC Max.
9.Output characteristic: Constant voltage & constant current mode, high precision and low noise.
10.Appearance patent and utility model patent.
11.Hold-up time: 20ms Min.
12.Storage temperature: -20℃~85℃, 5%—95%RH.
13.Cooling method: Natural cooling.
14.Safety standards: IEC/EN61347; CCC-GB19510.
15.Comply with chemical standards including RoHS, REACH, MSDS and TDS.
16.Certifications: CCC, CE.
17.MTBF:50,000 hours.
Model No.
Input Specifications
Output Voltage (V)
Output Current (A)
Max Power (W)
SK01HB-XXXYYYYW
(SK01H-001 18W)
100—240V~ 50/60Hz 0.7A Max
5.0-12.0
0.01-2.4
12.0
12.1-24.0
0.01-1.0
18.0
SK01HB-XXXYYYYW
(SK01H-002 24W)
100—240V~ 50/60Hz 0.7A Max
5.0
0.01-3.0
15.0
5.1-12.0
0.01-2.0
24.0
12.1-24.0
0.01-1.98
24.0
