Power Adapter for Lighting

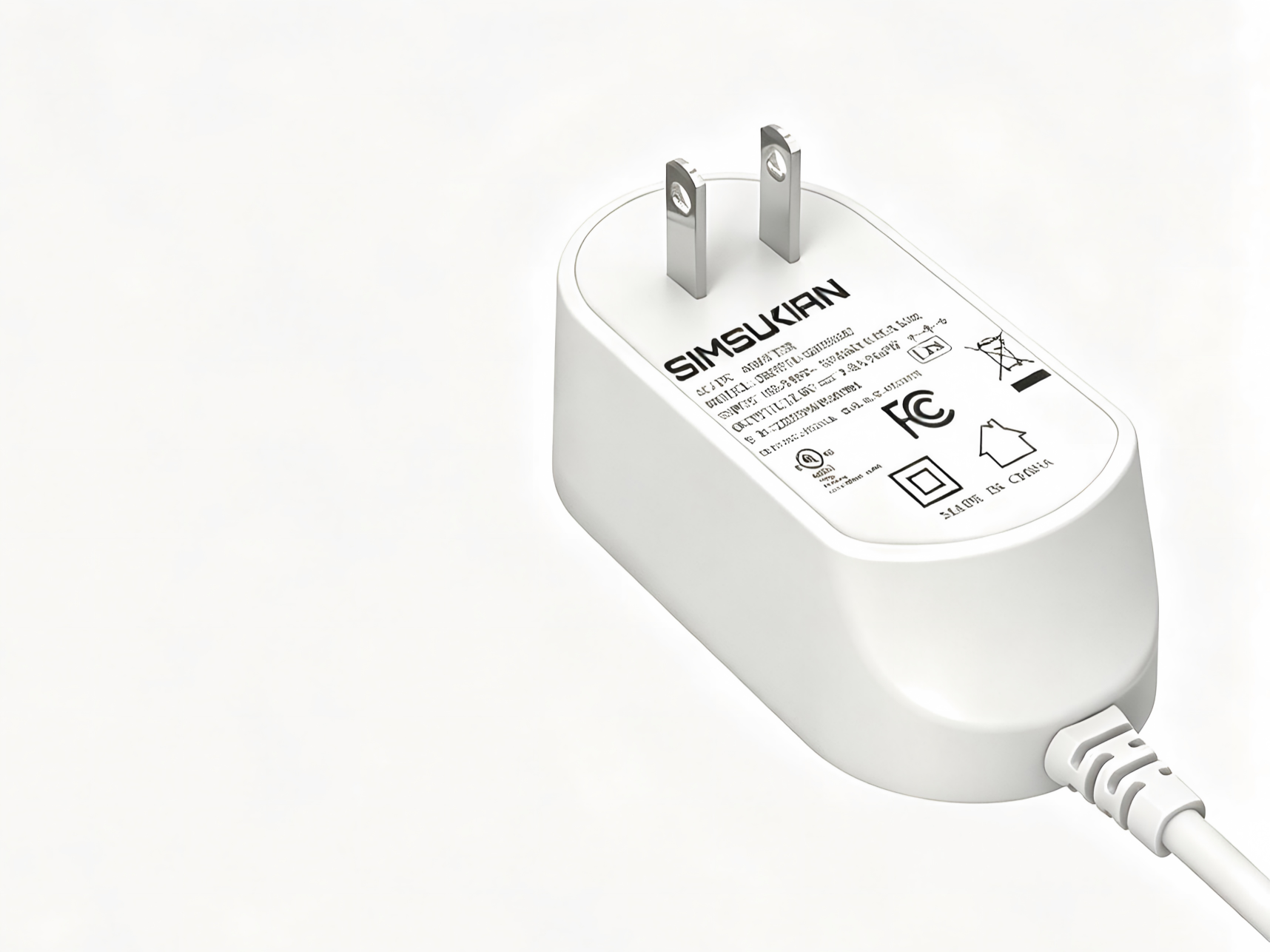

36W wall-plug power adapter, Level VI energy efficiency, wide voltage input, equipped with multiple safety protection circuits. This 36W wall-plug power adapter features a compact, cordless design with stable output, suitable for smart lighting fixtures, portable small home appliances, and security devices. Supports connector customization and is available for bulk orders.

Features:

Reliable 24V DC power for your LED lighting. The 24V 1.5A (36W) Power Adapter delivers steady, safe power to LED strip lights, light boxes, signage, and other 24V lighting fixtures — plug in and light up.

Use scenarios

LED strip lighting — Power kitchen, bedroom, shelf, and display LED strip lights.

Light boxes & signage — Drive illuminated signs, light boxes, and channel letters reliably.

DIY & home projects — A simple power source for 24V LED modules and hobby lighting setups.

Display & retail — Keep showcase and window lighting running steadily during business hours.

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability,ultraonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.85A Max;
Starting Time:3s max;Inrush Current 20A/240VAC Max
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;
Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-VI standard;
9). Safety standards: IEC/EN/UL60950, UL62368, ETL1310, GB19510, GB4943, CQC4706
10).Meet ROHS standards;
11).Pin Type: CCC / UL / ETL / FCC / CE / UKCA / GS / RCM / KC / PSE;
12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
