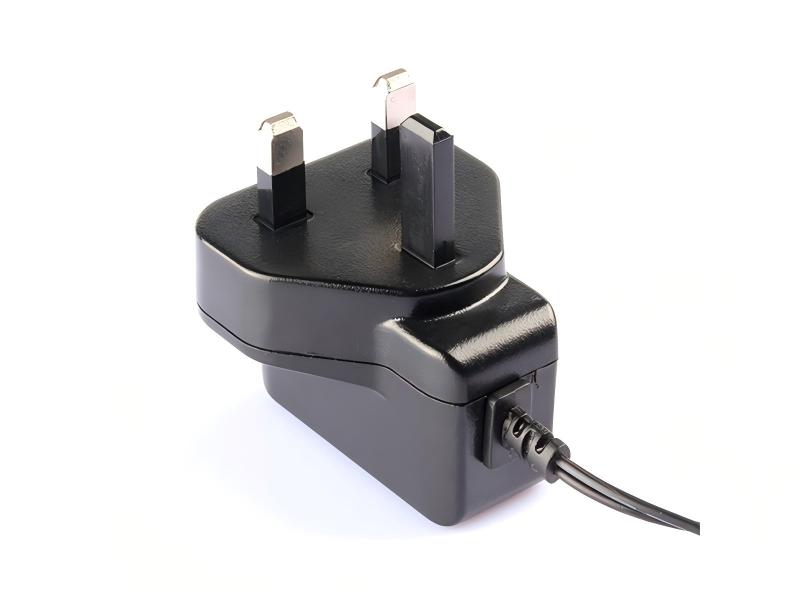

12W UK plug power adapter-SK02G

WhatsApp: +86 15361658306
Phone: +86 15361658306
E-mail: gpe@simsukian.com
Price: Price Negotiable

Overview

12W UK plug power adapter with 100-240V wide voltage input, compliant with Level VI energy efficiency and BS certification. Built-in multiple protections including overvoltage, overcurrent and short circuit for stable power supply and sturdy housing. Suitable for security cameras, LED strips, small massagers and other devices. Customizable DC connectors available to support bulk orders from UK customers.

产品介绍

12W UK power adapter features
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.35A Max;Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)

ModelI/P ConditionOutput(V)Output(A)Output(W)max
SK02G-XXXXYYYW
2.8-6.0V0.1-2.0A12W
SK02G-XXXXYYYW100-6.1-8.9V0.1-1.97A14.4W
SK02G-XXXXYYYW240VAC9.0-11.9V0.1-1.5A14.4W
SK02G-XXXXYYYW0.35A Max12.0-14.9V0.1-1.2A14.4W
SK02G-XXXXYYYW50/60Hz15.0V-18.9V0.1-0.96A14.4W
SK02G-XXXXYYYW
19.0-24.0V0.1-0.76A14.4W
