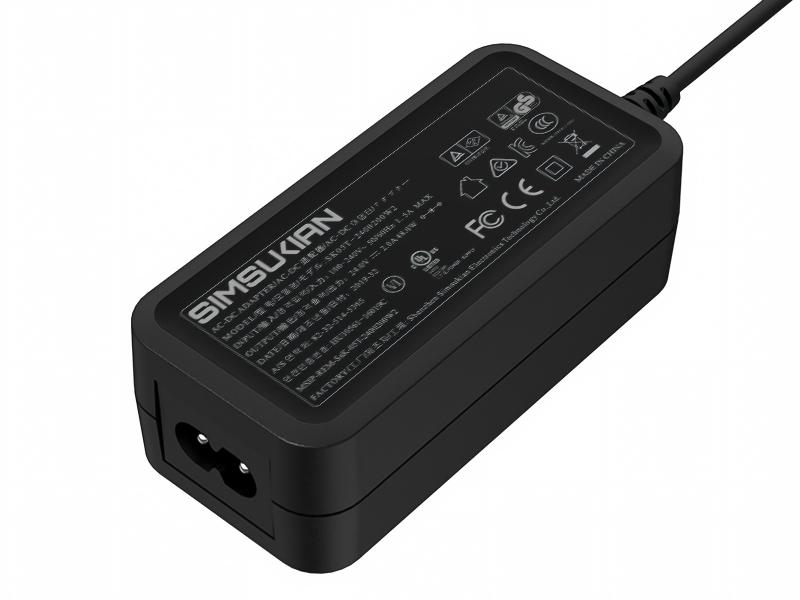

36W Desktop Power adapter-SK05T

The 36W desktop power adapter is compact, light, sealed, portable. Reliable with ultrasonic lamination, OVP, OCP, SCP. Input: 100-240VAC, 50/60Hz, 0.85A; start≤3s; inrush≤45A. Output: CV, precision, low-noise; hold-up≥20ms. Temp:0-40°C; storage:-20-85°C. Natural cooling. Meets ERP, CEC-V. Safety: IEC/EN/UL60950. RoHS. Input: IEC-C6/C8. MTBF:50kh. This desktop power adapter delivers reliable power.

36W Desktop Power adapter-SK05T Features：
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Low-cost design, high reliability, ultrasonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.85A Max;Starting Time: 3s Max; Inrush Current: 45A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Input Block Type: IEC-C6/IEC-8/IEC-8;

12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)
