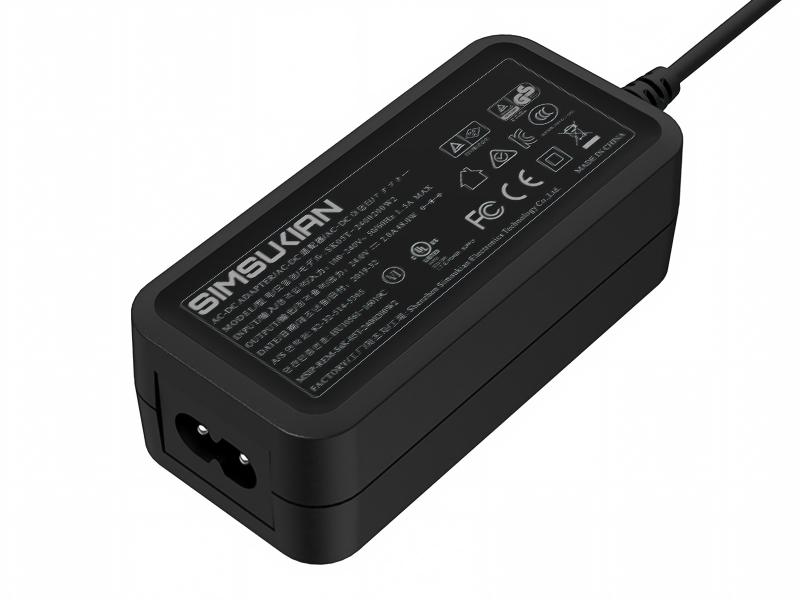

30W desktop power adapter -SK03T1

30W desktop power adapter with 100-240V wide voltage input, compliant with Level VI energy efficiency standard. Built-in multiple protections including overvoltage, overcurrent and short circuit, it ensures consistent stable power and good heat dissipation. Suitable for industrial data acquisition terminals, small industrial control boxes and portable testing instruments. Customizable DC connectors available for bulk orders at home and abroad.

30W desktop power adapter Features:

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;

2). Competitive price design, high reliability,ultraonic lamination;

3). Built-in over voltage, over current and short circuit protection;

4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.85A Max;

Starting Time:3s max;Inrush Current20A/240VAC Max

5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;

6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;

Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;

7). Cooling mode: natural cooling;

8). Energy efficiency accordingly: ERP / CEC-VI standard;

9). Safety standards: IEC/EN/UL60950；UL62368;

10).Meet ROHS standards;

11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;

12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
