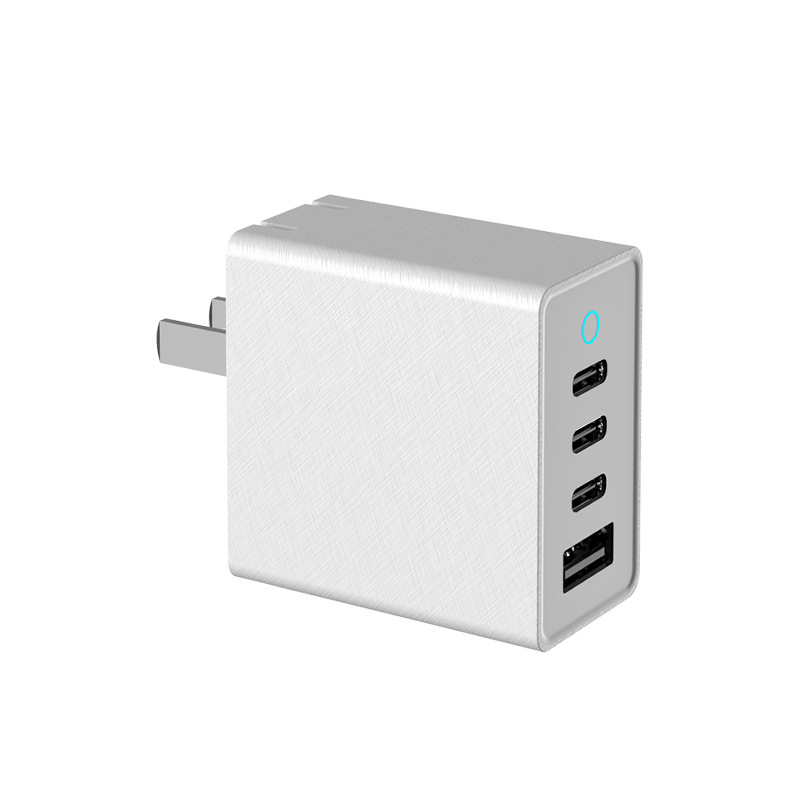

65W GaN Quick Charger-SK-PD65-006

The 65W GaN quick charger is compact, light, sealed, portable. Reliable with ultrasonic lamination, OVP, OCP, SCP. Input: 100-240VAC, 50/60Hz, 1.5A; start≤3s; inrush≤20A. Output: CC/CV, precision, low-noise; hold-up≥20ms. Temp:0-40°C; storage:-20-85°C. Natural cooling. Meets DOE, CEC-VI. Safety: J62368, GB4943, ETL62368. RoHS. Plugs: CCC, ETL, PSE. MTBF:50kh. This 65W GaN quick charger delivers reliable power.

65W GaN Quick Charger-SK-PD65-006 Features:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability,ultraonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.5A Max;
Starting Time:3s max;Inrush Current 20A/240VAC Max
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;
Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: DOE / CEC-VI standard;
9). Safety standards: J62368, GB4943, ETL62368
10).Meet ROHS standards;
11).Pin Type: CCC / ETL / PSE;
12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
