Abstract

A USB charger delivers fixed 5V DC and recognizes low-power IoT devices through D+/D- resistor divider. This USB charger omits fast charging circuits to provide stable constant voltage power for compact smart hardware. For this USB charger, key metrics include idle power, voltage precision and surge protection. This article covers electrical parameters, aging and EMI filtering for bulk IoT USB charger procurement.

1. Basic Electrical Parameters of the USB Charger

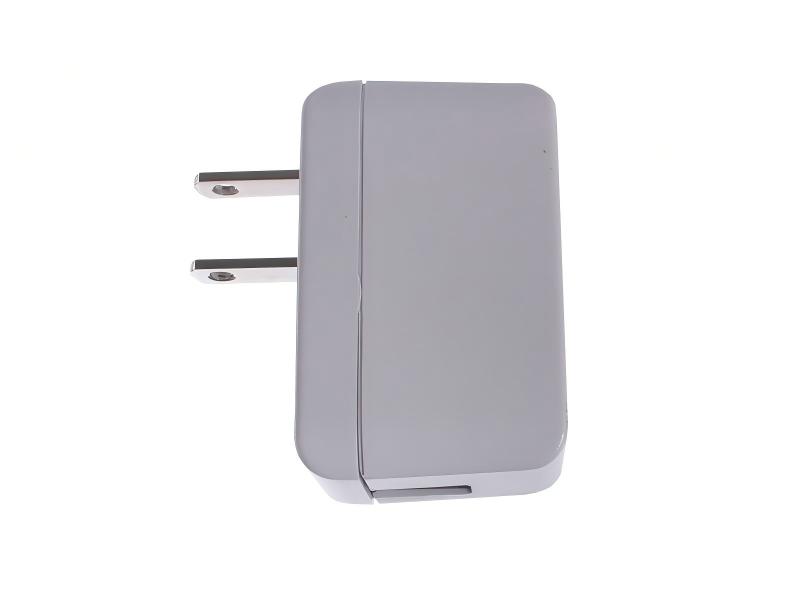

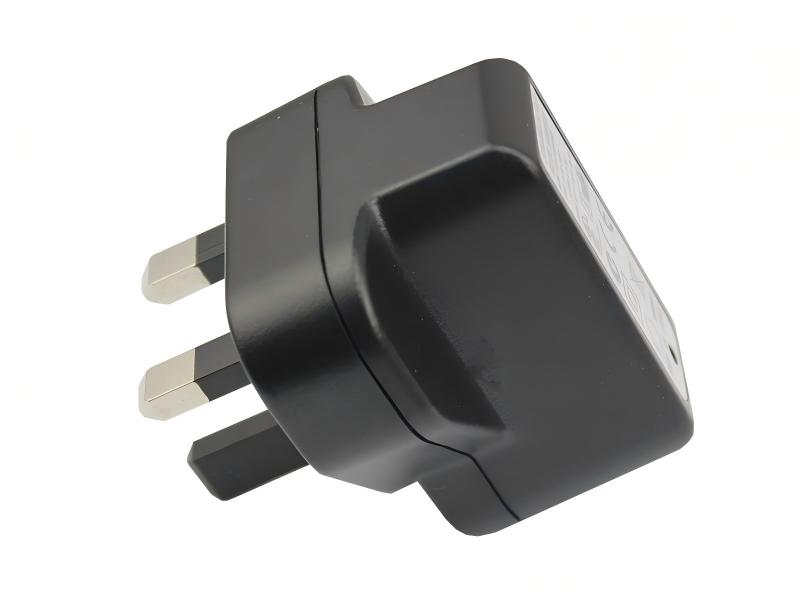

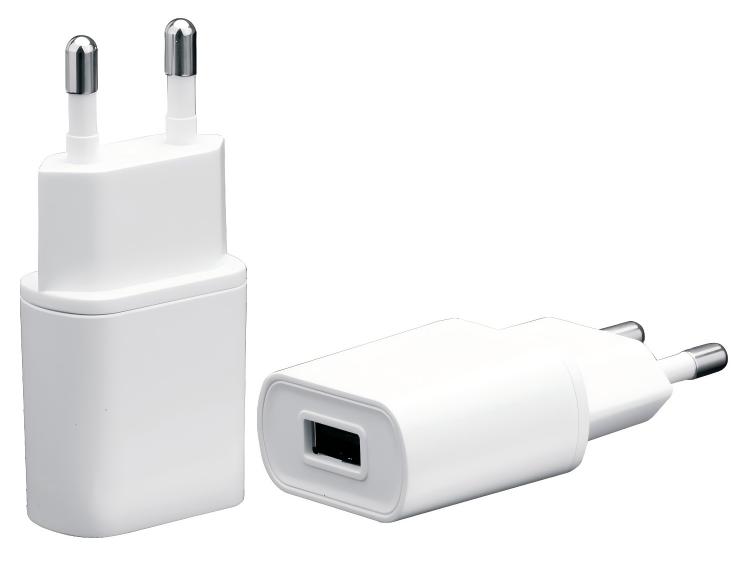

The 5V USB-A USB charger accepts universal 100–240V AC input at 50/60Hz. Rated output 5V/2A, output voltage range from 4.75V to 5.25V. The USB charger limits peak ripple to 120mV to protect sensors and MCU. No-load standby power <0.04W, complying with DOE Level VI. The USB charger uses passive D+/D- resistors for device identification without complex protocol ICs.

2. Load Response & Constant Voltage Regulation of the USB Charger

This USB charger uses primary-side feedback SMPS for simple and stable operation. When load changes from light to full, the USB charger keeps voltage dip below 5% with recovery time under 20ms. The USB charger maintains steady 5V for continuously powered IoT hardware such as smart locks, sensors and mini cameras. It outputs only standard 5V and prevents high-voltage damage to non-fast-charge devices.

3. Surge Protection & Reliability Testing of the USB Charger

The USB charger integrates common-mode choke plus X/Y capacitors for EMI filtering to meet FCC conducted emission limits. Surge rating: L-N differential ±1kV, common-mode ±2kV. Hardware protections include overcurrent, short-circuit, overtemperature and overvoltage. The USB charger shuts down during short-circuit and auto-recovers after fault removal. V0 flame retardant PC housing. Burn-in test runs 6 hours full-load at 40℃. USB-A receptacle passes 8,000 insertion cycles.

4. Certification & Applications of the USB Charger

Export USB charger designed to IEC62368-1, available with CE, FCC, RoHS. This USB charger matches smart home sensors, mini humidifiers, Bluetooth gateways and video doorbells. OEM options include cable length, housing color and custom printing. Operating temperature -10℃ ~ +45℃ for continuous indoor operation.

Summary

When sourcing fixed 5V USB charger, validate voltage precision, standby power, surge protection and long-run aging. Contact Simsukian for custom current rating and housing design.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety standard

2. IEC 63002 Interoperability specifications for external power supplies

3. US DOE External Power Supply Energy Efficiency Rules
