Abstract

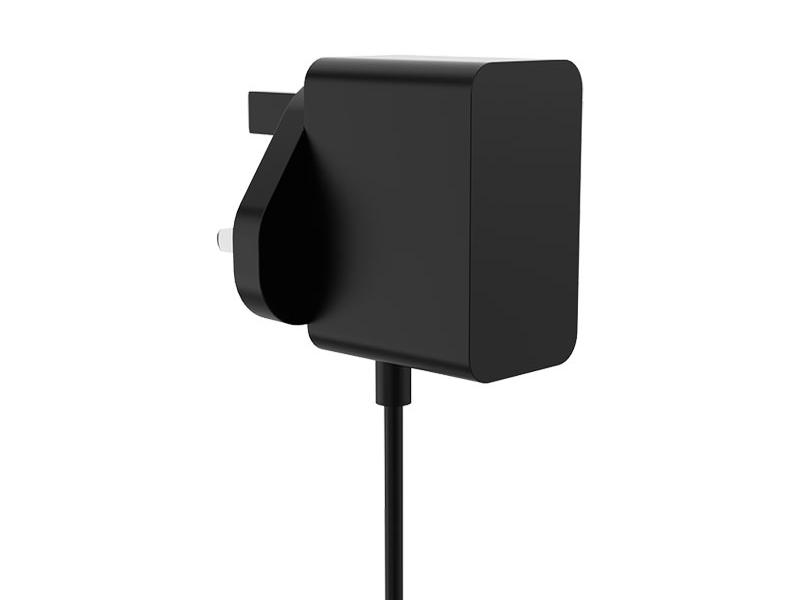

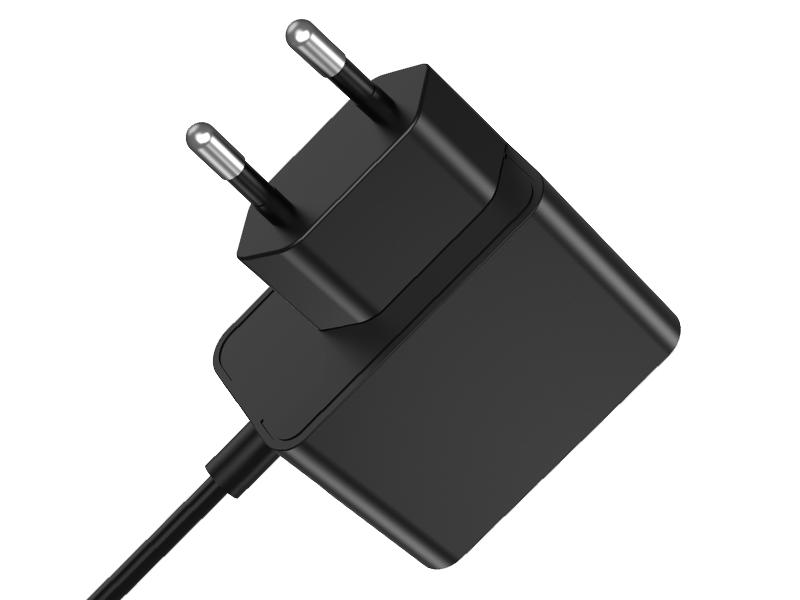

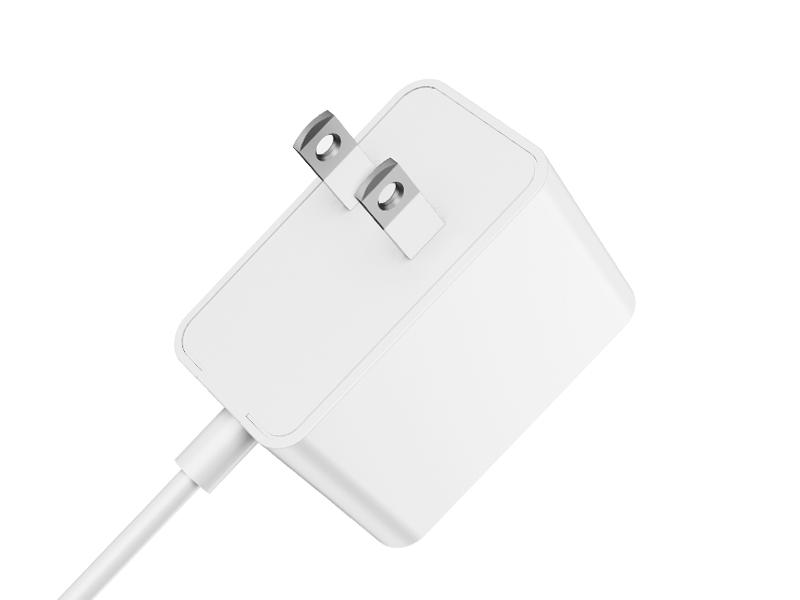

IoT-focused Silicon Carbide Power Adapter optimizes light-load operation and cuts idle losses. Silicon Carbide Power Adapter achieves standby power ≤22mW and ≥87% efficiency at 10% load to meet ERP L6 and DOE Level VI. Silicon Carbide Power Adapter features low ripple for smart locks, surveillance cameras and always-on IoT gateways.

1. Input & Output Electrical Specs

IoT Silicon Carbide Power Adapter accepts 90–264VAC input, 50/60Hz, max input current 1.2A. Silicon Carbide Power Adapter rated output 12V 2A, ±2% voltage tolerance and peak ripple ≤45mV. Silicon Carbide Power Adapter peak full-load efficiency hits 95.1% at 110kHz switching frequency. Silicon adapters usually drop below 80% efficiency at 10% load. Thanks to low switching loss of SiC, Silicon Carbide Power Adapter keeps over 87% efficiency at 10% load. Standby power ≤22mW, better than ERP Level 6 30mW cap.

2. Light-Load Control Scheme

Silicon Carbide Power Adapter uses hybrid variable frequency & emergency-mode control. At light load, switching frequency automatically drops to reduce switching loss without audible noise. Silicon Carbide Power Adapter maintains ultra-low power while IoT devices sleep. Many IoT nodes stay lightly loaded year-round. Silicon Carbide Power Adapter reduces wasted power consumption and cuts energy bills for large-scale IoT deployment. The control loop of Silicon Carbide Power Adapter remains stable without output flicker to keep sensors online.

3. Environmental & Thermal Performance

Silicon Carbide Power Adapter operating temperature -15℃~+50℃, storage -25℃~+85℃, humidity 5–95% non-condensing. At 45℃ ambient full load, case temperature rise of Silicon Carbide Power Adapter reaches 54℃. Light-load operation keeps junction temperature low, slowing aging and extending lifespan. Silicon Carbide Power Adapter passes thermal cycling and starts smoothly in cold environments for cold-region server rooms.

4. Protection & Certifications

Silicon Carbide Power Adapter integrates full hardware OVP, OCP, SCP, OTP, UVLO. Fast short-circuit protection safeguards IoT mainboards. Silicon Carbide Power Adapter meets EN55032 Class B and avoids interference with Wi-Fi and Bluetooth. Certifications include UL62368, CE, FCC, UKCA, PSE for global IoT manufacturers. Silicon Carbide Power Adapter MTBF ≥52,000 hours and reduces field replacement cost.

Summary

IoT low-standby Silicon Carbide Power Adapter delivers outstanding energy savings at light and idle loads for always-on IoT hardware. Contact Simsukian for samples and custom Silicon Carbide Power Adapter solutions.
