Abstract

A wall plug power adapter is integrated direct-plug AC-DC unit with circuits, pins and housing combined. The wall plug power adapter shrinks footprint while retaining full safety protection. This wall plug power adapter covers dimensions, housing material and mechanical strength parameters for compact consumer product development.

1. Miniaturized Structure Design

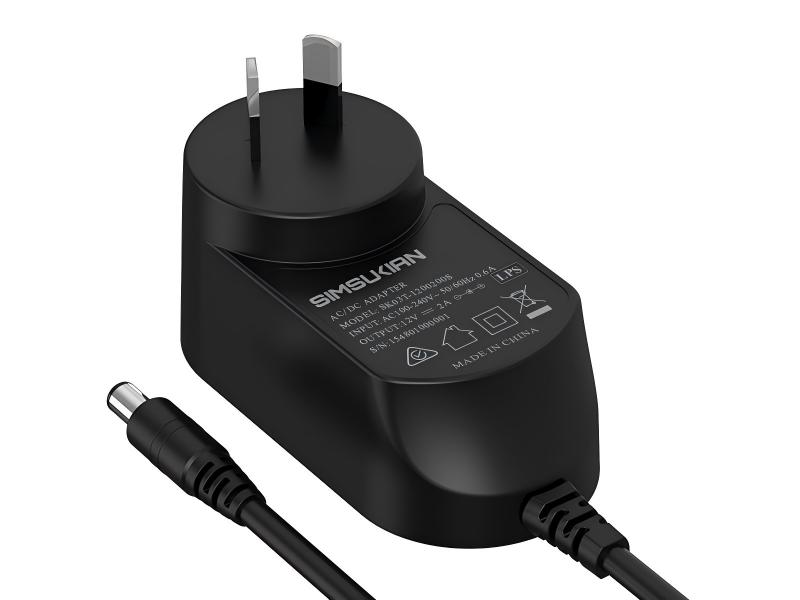

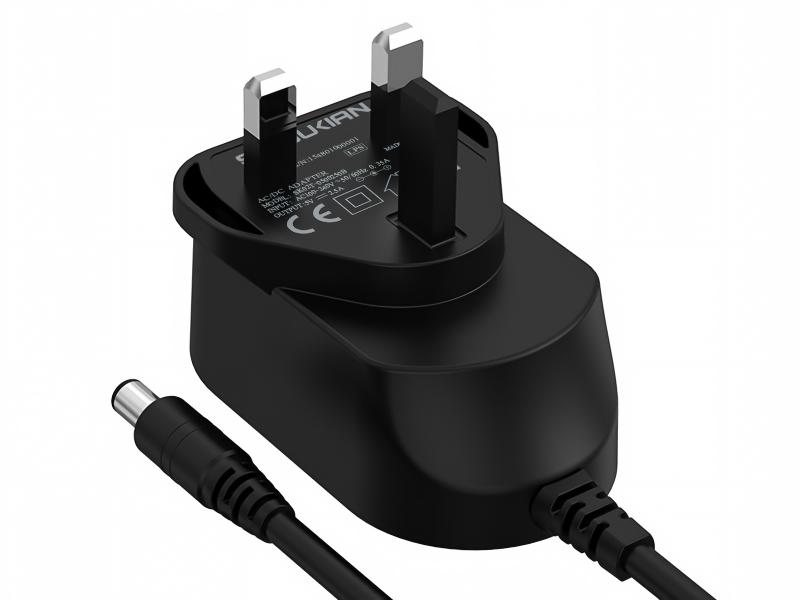

The wall plug power adapter encapsulates transformer, PCB and safety components in a fixed-pin housing, removing separate power base. The wall plug power adapter uses high-frequency mini transformer and SMD components to compress overall dimensions for tight installation space. Dimensions of the wall plug power adapter directly affect end-product appearance and packaging size.

2. Dimensions and Weight Parameters

For standard 5~24W power range, length, width and height of the wall plug power adapter are optimized by power level, with far lower weight than traditional desktop adapters. The wall plug power adapter reserves sufficient internal creepage distance; size reduction must never sacrifice safety. The wall plug power adapter offers standard housing and supports custom shape and opening requirements.

3. Housing Material Physical Parameters

Housing of the wall plug power adapter uses V0 flame-retardant PC material with anti-aging and anti-yellowing properties. The wall plug power adapter material withstands long-term 70℃ housing temperature without deformation. The wall plug power adapter housing has excellent impact resistance and resists cracking in drop tests.

4. Mechanical Strength and Endurance

Pin insertion endurance of the wall plug power adapter reaches 5000 cycles without looseness or deformation. The wall plug power adapter housing survives 1-meter drop onto concrete ground without electrical damage. Snap-fit strength of the wall plug power adapter withstands repeated plugging without housing separation or cracking.

5. Impact of Structural Parameters on Export

External shape of the wall plug power adapter must fit socket space requirements in different countries. Flammability rating of the wall plug power adapter housing is mandatory for UL and CE certification; substandard material directly causes certification failure.

Conclusion

Compact structure and reliable housing material of the wall plug power adapter suit miniaturized consumer product design. If you need custom structural design of the wall plug power adapter, contact Simsukian for 3D drawings and structural parameter documents.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety standard

2. DOE Level VI External Power Supply Standard (US)

3. IEC 63002 Interoperability specifications for external power supplies
