Abstract

A wall plug power adapter is integrated direct-plug AC-DC power unit with integrated plug housing. The wall plug power adapter has multi-layer safety protection and tightly controls leakage and insulation strength. This wall plug power adapter includes hipot, insulation resistance and touch leakage parameters to meet market requirements of US, EU, UK and Australia.

1. Core Safety Design Logic

Safety design of the wall plug power adapter follows IEC62368, isolating high voltage primary side and low voltage secondary side to prevent electric shock. The wall plug power adapter adopts reinforced insulation with sufficient creepage and clearance distance, which is key assessment item for overseas safety certification. The wall plug power adapter uses V0 flame-retardant PC housing to slow fire propagation.

2. Hipot and Leakage Current Parameters

The wall plug power adapter passes 3000VAC hipot test between primary and secondary for 60 seconds without breakdown or flashover. The wall plug power adapter insulation resistance ≥100MΩ at 500VDC. The wall plug power adapter touch leakage current is limited under 0.1mA, suitable for user-touchable smart hardware.

3. Creepage and Clearance Parameters

High voltage circuit of the wall plug power adapter provides creepage distance ≥6.4mm and electrical clearance ≥3.2mm to meet IEC62368 reinforced insulation. PCB and component layout of the wall plug power adapter follows safety rules to avoid tracking breakdown risk. The wall plug power adapter maintains stable insulation under humid conditions.

4. Multi-Country Fixed Pin Specifications

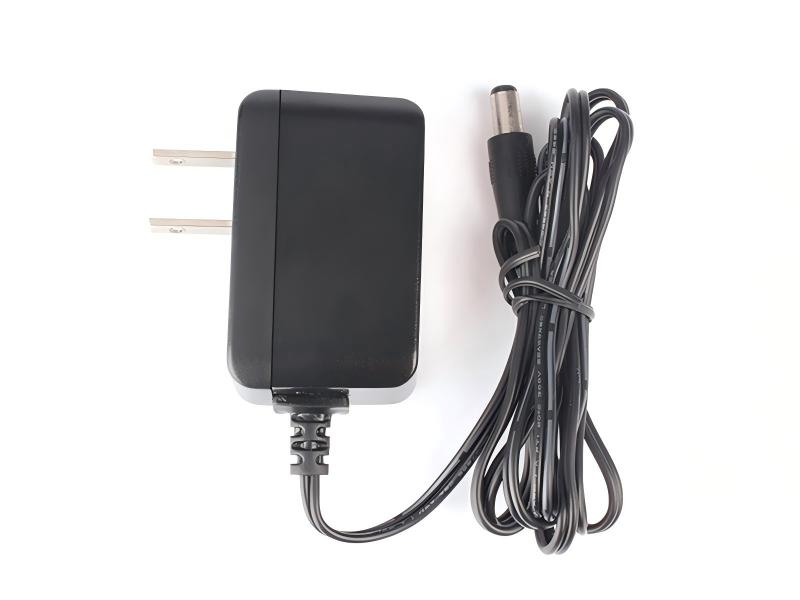

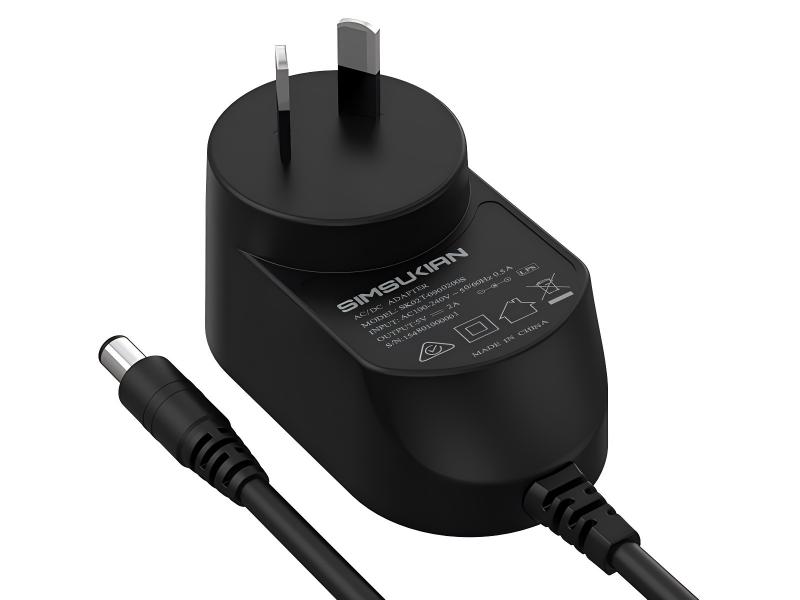

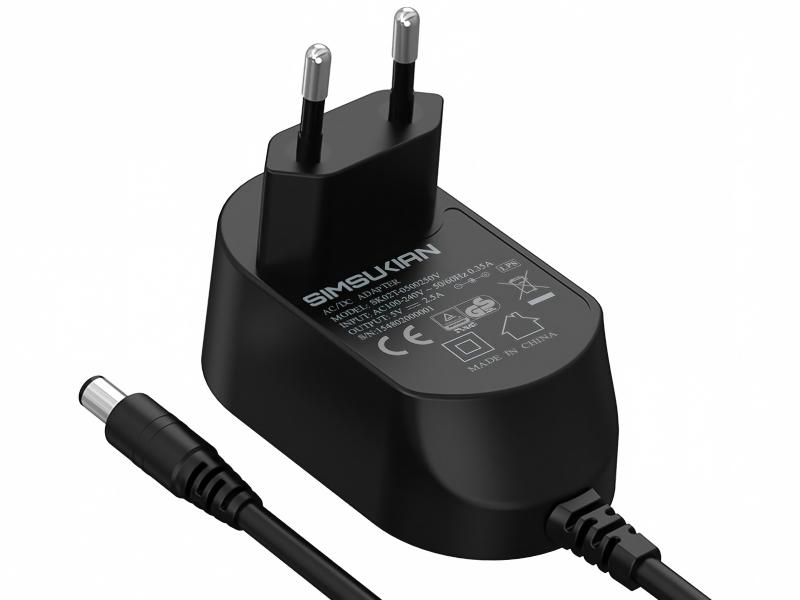

The wall plug power adapter can be pre-assembled with US, EU, UK, AU fixed pins, eliminating detachable pin structure and reducing mechanical failure. The wall plug power adapter plug endurance reaches 5000 insertions without looseness or poor contact. Different pin variants of the wall plug power adapter keep identical internal circuit parameters to reduce customer version management cost.

5. Importance of Safety Parameters for Certification

Hipot, leakage and creepage parameters of the wall plug power adapter are mandatory tests for UL, CE and UKCA. Every wall plug power adapter undergoes 100% hipot test before shipment to remove defective units and prevent end-product recall risk.

Conclusion

Strict safety parameters and multi-region pin options of the wall plug power adapter simplify global certification. If you need wall plug power adapter with customized plug types, contact Simsukian for safety test reports and samples.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety standard

2. DOE Level VI External Power Supply Standard (US)

3. IEC 63002 Interoperability specifications for external power supplies
