75W Desktop Power Adapter-SK08T
| WhatsApp： | +86 15361658306 |
|---|---|
| Phone： | +86 15361658306 |
| E-mail： | gpe@simsukian.com |
| Price： | Price Negotiable |
|
Previous：
60W Desktop Power Adapter-SK08T
Overview

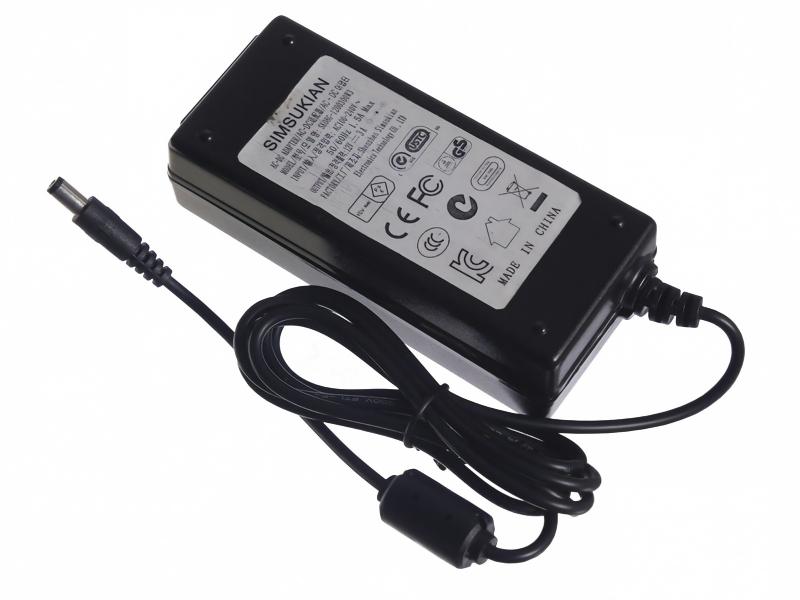

75W desktop power adapter, 100-240V wide voltage input, desktop housing, Level VI energy efficiency standard, integrated multiple safety protections of overvoltage, overcurrent and short circuit. With multi-country safety certifications, stable output and reliable heat dissipation. Suitable for laptops, medical peripherals, energy storage devices and intelligent terminals. Customizable parameters to fit power supply scenarios of various commercial devices.
产品介绍
75W Desktop Power Adapter Product Features:1). Ultra-small size, light weight, streamline, fully sealed and easy to carry; 2). Competitive price design, high reliability, ultrasonic lamination; 3). Built-in over voltage, over current and short circuit protection; 4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.6AMax; Starting Time: 3s Max; Inrush Current: 60A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min; 6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH; Storage temperature: -20 ℃ -85 ℃, 5% -95% RH; 7). Cooling mode: natural cooling; 8). Energy efficiency accordingly: ERP/ CEC-V standard; 9). Safety standards: IEC/EN/UL60950; 10).Meet ROHS standards; 11).Input Block type：IEC-C6/IEC-8/IEC-14； 12).Average failure rate: 50,000 hours; 13).Electrical characteristics: (see below sheet)
Model I/P Condition Output（V） Output（A） Output（W）max SK08T-XXXXYYY 5.0-8.9V 0.1-7.8A 60W SK08T-XXXXYYY 100- 9.0-11.9V 0.1-7.0A 68W SK08T-XXXXYYY 240VAC 12.0-18.9V 0.1-6.25A 75W SK08T-XXXXYYY 1.5A Max 19.0-24.9V 0.1-3.95A 75W SK08T-XXXXYYY 50/60Hz 25.0-36.9V 0.1-3.0A 75W SK08T-XXXXYYY 37.0-48.0V 0.1-2.03A 75W
