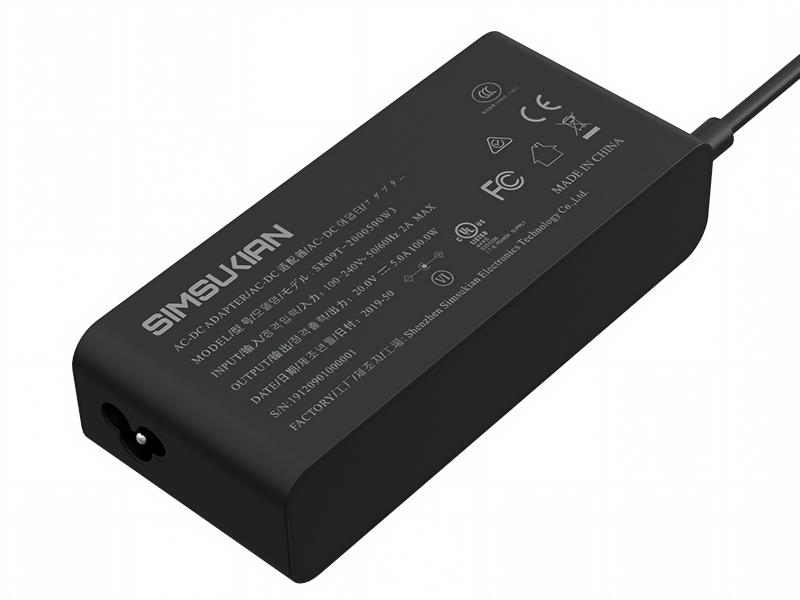

96W Desktop Power adapter-SK09T

The 96W desktop power adapter is compact, light, sealed, portable. Reliable with ultrasonic lamination, OVP, OCP, SCP. Input: 100-240VAC, 50/60Hz, 2.5A; start≤3s; inrush≤20A. Output: CC/CV, precision, low-noise; hold-up≥20ms. Temp:0-40°C; storage:-20-85°C. Natural cooling. Meets ERP, CEC-VI. Safety: IEC/EN/UL60950, UL62368. RoHS. Plugs: UL, CCC, VDE, BS, SAA, KC, PSE. MTBF:50kh. This 96W desktop power adapter delivers reliable power.

96W Desktop Power adapter-SK09T Features:

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;

2). Competitive price design, high reliability,ultraonic lamination;

3). Built-in over voltage, over current and short circuit protection;

4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 2.5A Max;

Starting Time:3s max;Inrush Current20A/240VAC Max

5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;

6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;

Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;

7). Cooling mode: natural cooling;

8). Energy efficiency accordingly: ERP / CEC-VI standard;

9). Safety standards: IEC/EN/UL60950；UL62368

10).Meet ROHS standards;

11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;

12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
