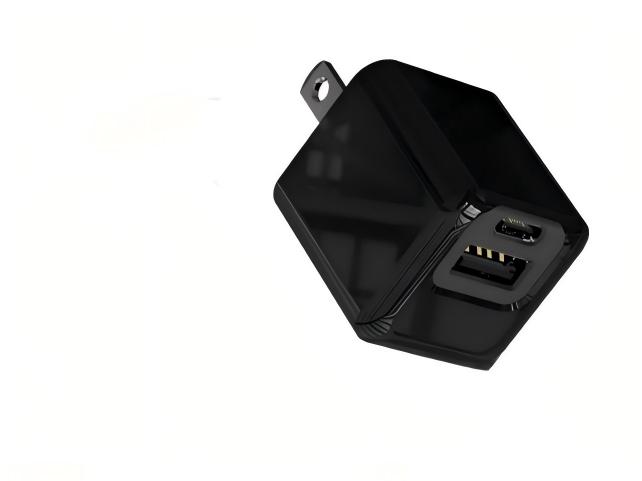

PD 20W Charger-SK-PD20-005

**PD20W charger** adopts Type-C port, supports PD fast charging protocol, 100-240V wide voltage input, built-in multiple safety protections, compact and portable. This **PD20W charger** is compatible with mobile phones, tablets and other digital devices. It has flame-retardant housing and excellent energy efficiency. OEM customization is available with multiple international safety certifications, suitable for bulk foreign trade supply.

PD 20W Charger Features:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability,ultraonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.55A Max;
Starting Time:3s max;Inrush Current 20A/240VAC Max
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;
Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: DOE / CEC-VI standard;
9). Safety standards: GB4943, ETL62368
10).Meet ROHS standards;
11).Pin Type: CCC / ETL / FCC / PSE;
12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
