Abstract

The output ripple of desktop power adapters determines power purity, serving as a core selection index for B-end procurement of precision electronic equipment. Low-ripple desktop power adapters eliminate signal interference, screen flicker and data drift. This article analyzes the ripple generation mechanism, industry test standards and verification methods of desktop power adapters with measured data, guiding B-end buyers to select high-purity power supplies for overseas medical, testing and industrial precision equipment.

1. Influence of Output Ripple on Equipment Powered by desktop power adapters

AC-DC conversion of desktop power adapters generates tiny AC fluctuations defined as ripple. Excessive ripple of desktop power adapters interferes with signal transmission and data collection of precision equipment, causing screen flicker, sensor drift and communication packet loss.

These problems often lead to B-end project delays and after-sales failures. Therefore, ripple testing is a mandatory inspection item for desktop power adapters during B-end sample evaluation.

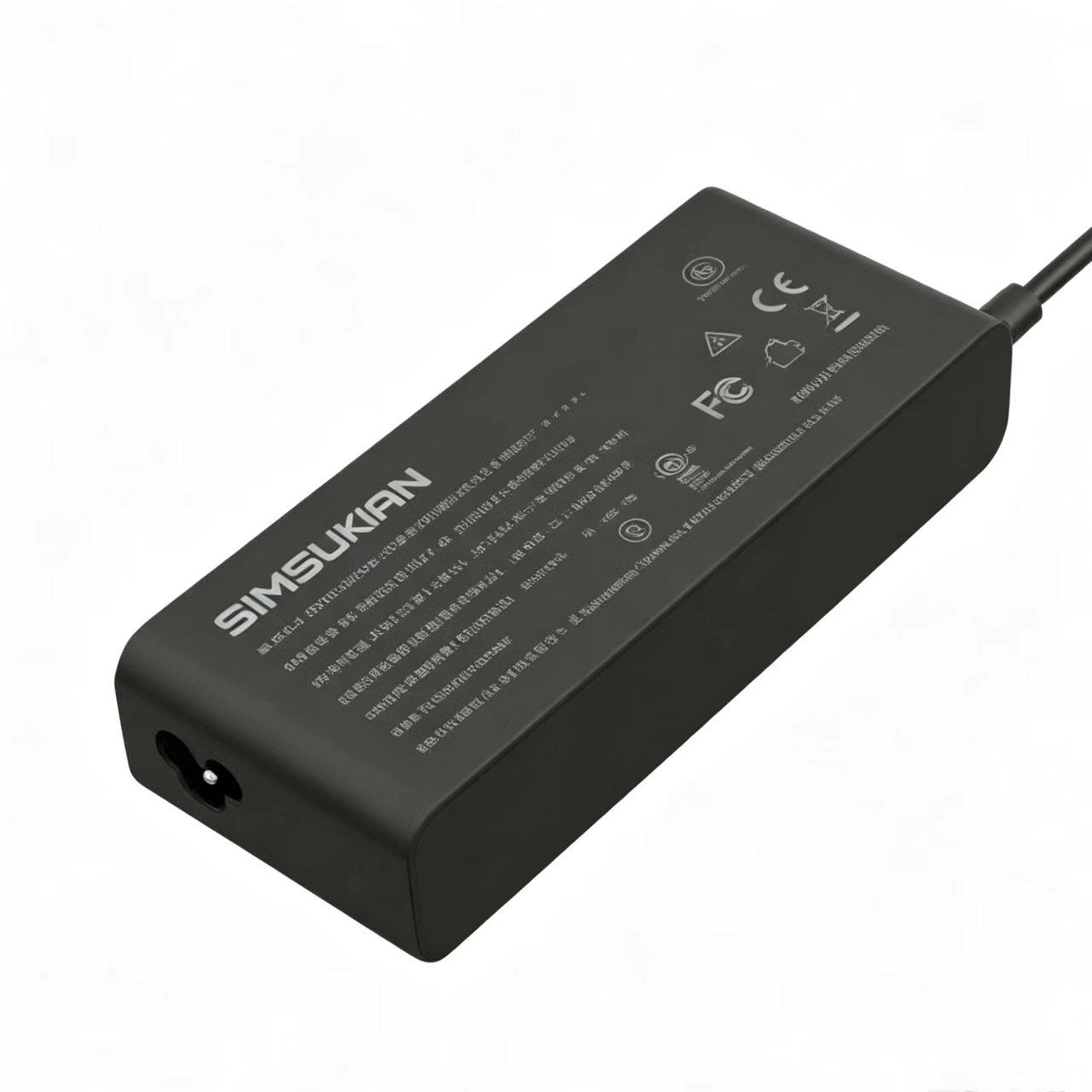

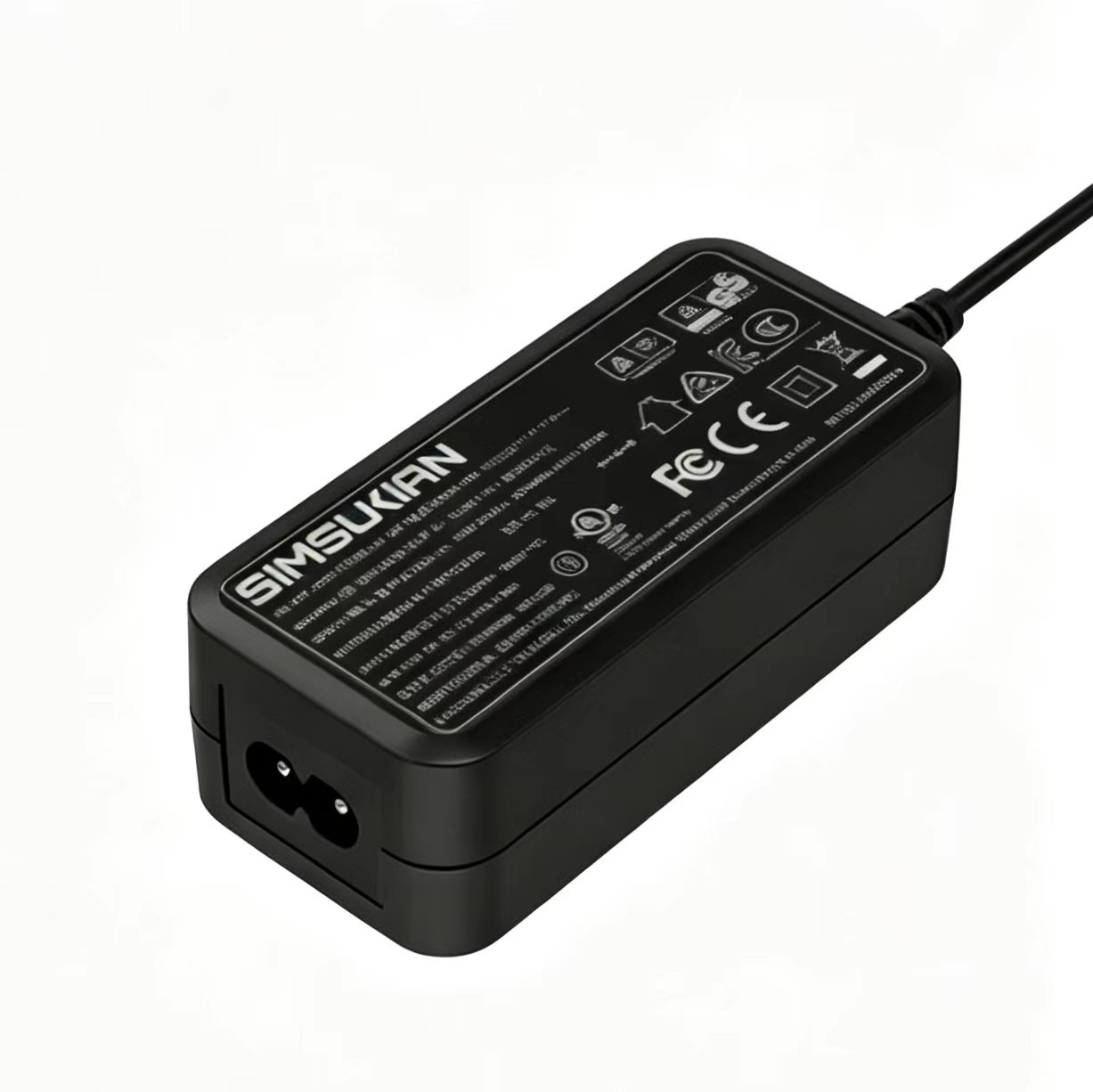

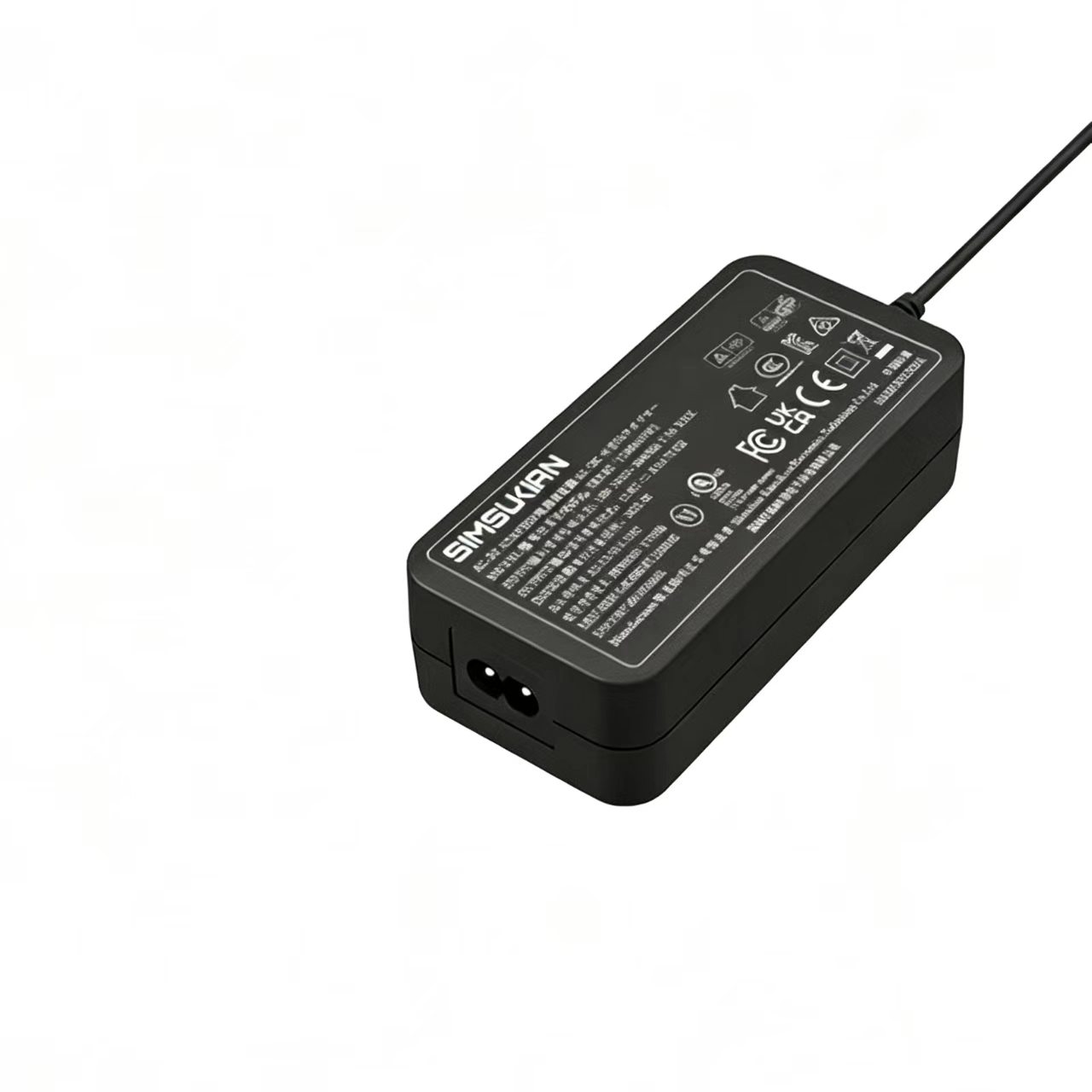

To meet high-precision power supply demands, SenShuQiang launches 15V 4A 60W desktop power adapters. These desktop power adapters control full-load ripple strictly below 100mV.

Tested by professional oscilloscopes and standard fixtures, these desktop power adapters deliver superior power purity than industry standards. High-purity desktop power adapters effectively eliminate power interference, perfectly matching medical testing, industrial imaging and precision instrument applications.

2. Core Ripple Optimization Technology of desktop power adapters

The ripple of desktop power adapters mainly derives from high-frequency switching, transformer coupling noise and defective filter circuits. Low-end desktop power adapters adopt simplified filter structures and low-grade capacitors, resulting in severe ripple surge under full load.

SenShuQiang’s qualified desktop power adapters adopt multi-stage filter architecture, matched with low-ESR electrolytic and ceramic capacitor combinations. Optimized PCB wiring suppresses high-frequency noise and loop interference fundamentally for these desktop power adapters.

Different from ordinary suppliers’ half-load-only testing method, these desktop power adapters pass no-load, half-load and full-load all-condition ripple tests. This design ensures stable power purity of desktop power adapters in all working scenarios without excessive ripple risks.

3. Overseas B-end Standard Test and Verification Process fordesktop power adapters

Different industries have distinct ripple threshold requirements for desktop power adapters, with the strictest standards for medical and precision testing equipment. Overseas B-end engineers adopt unified testing standards for desktop power adapters, using oscilloscope coaxial probes, fixed bandwidth and standard loads for detection.

Suppliers are required to provide original waveform screenshots and test reports of desktop power adapters as the basis for whole-machine certification.

The standard verification process for desktop power adapters includes three steps: no-load test, 50% half-load test and 100% long-term full-load test. Inspectors focus on ripple deterioration and voltage fluctuation of desktop power adapters under high-temperature operation.

SenShuQiang provides complete waveform files and test reports for desktop power adapters. Customized filter optimization is available for ultra-precision equipment to further reduce the ripple of desktop power adapters.

Conclusion

Power purity is the core standard for desktop power adapters matching precision equipment. SenShuQiang 15V4A desktop power adapters feature ultra-low ripple (≤100mV), full-condition stable output and multi-stage filter design, making these desktop power adapters ideal for high-end overseas precision equipment. Contact SenShuQiang for high-purity desktop power adapters samples and customized solutions.

Sources:

1.IEC 61010 Test Standard

2.dianyuan.com Switching Power Filter Document

3.ANSI Ripple Test Specification
