Abstract

In cross-border electronic export projects, Conversion Pin Adapter is a key accessory to match socket standards in different countries. Many overseas manufacturers ignore specification matching of Conversion Pin Adapter at the design stage, causing sales barriers. Qualified Conversion Pin Adapter must pass safety, mechanical and flame resistance tests. This article introduces parameters, classifications and selection tips to help buyers avoid compliance risks.

1. What is a Conversion Pin Adapter

In international trade, different regions adopt different AC socket standards. US, EU, UK and AU sockets differ in pin shape and jack spacing. A Conversion Pin Adapter is a connector matching equipment power input with local sockets. Many buyers confuse Conversion Pin Adapter with full power adapters. A Conversion Pin Adapter only changes pin form without voltage transformation, which is the first key point in selection.

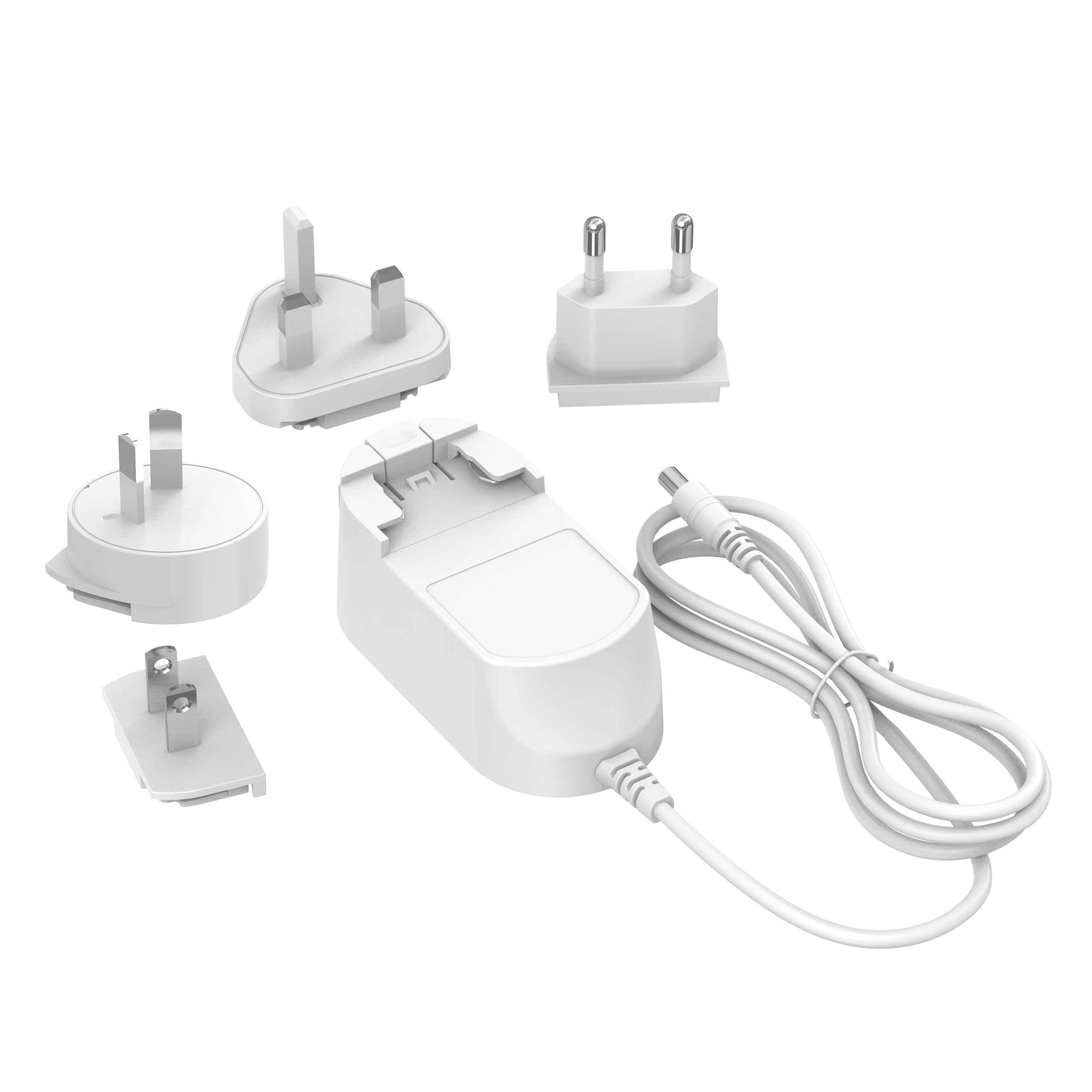

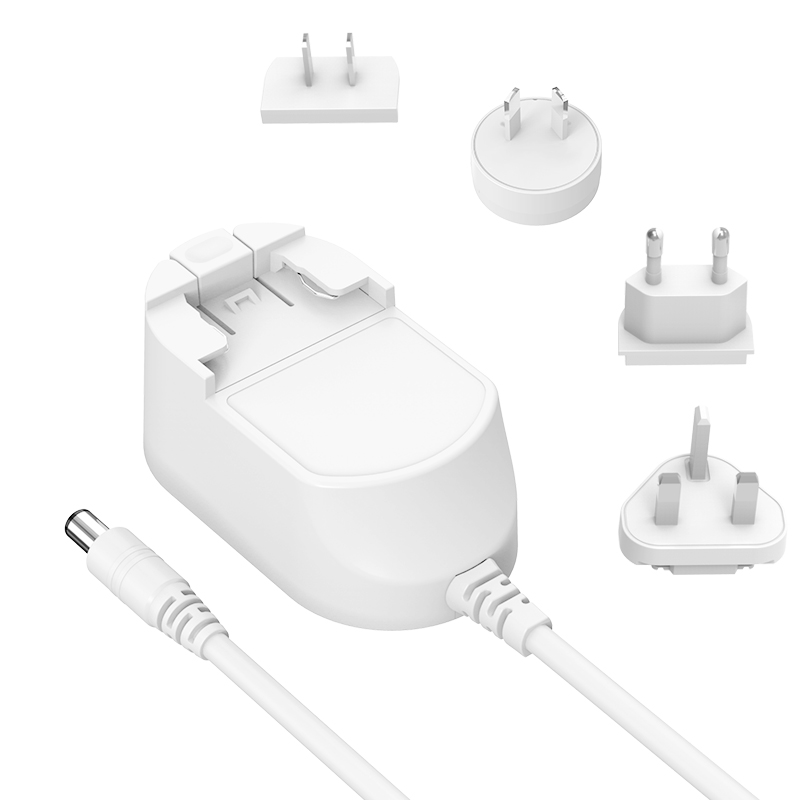

A Conversion Pin Adapter allows power supplies to fit global sockets by replacing pin components, without redesigning the whole power system. For industrial devices, small home appliances and LED manufacturers, Conversion Pin Adapter greatly reduce multi-version development costs. In bulk B2B procurement, mechanical reliability of Conversion Pin Adapter matters more than appearance.

2. Core Electrical and Mechanical Parameters of Conversion Pin Adapter

Commercial Conversion Pin Adapter commonly support AC100–250V, 50/60Hz, rated current at 3A,6A,10A. Withstand voltage test: AC3000V, insulation resistance ≥100MΩ, contact resistance ≤20mΩ. Housing flame rating UL94 V0, resisting ignition under high temperature.

Mechanically, qualified Conversion Pin Adapter have plug life ≥10,000 cycles. Pins stay tight without obvious contact resistance rise after repeated plugging. Aging test includes 72h full-load power-on aging and 500 thermal cycles. After testing, Conversion Pin Adapter shall have no crack, deformation or pin drop-off. These data evaluate long-term stability of Conversion Pin Adapter.

For overseas procurement, buyers need to confirm Conversion Pin Adapter carry CE, FCC, RoHS, UKCA certifications. Uncertified Conversion Pin Adapter may lead to customs detention. UK versions of Conversion Pin Adapter usually add child safety shutters.

3. Common Selection Mistakes for Overseas Buyers of Conversion Pin Adapter

The first mistake: thinking Conversion Pin Adapter change voltage. Standard Conversion Pin Adapter only convert pin shape, not voltage. If mains voltage mismatches device rating, a separate power adapter is still required. Second mistake: ignoring ambient temperature. Conversion Pin Adapter work reliably from -20℃ to +60℃. Exceeding this range accelerates material aging and degrades contact performance.

Some buyers prioritize low cost over plug cycle life. Low-grade Conversion Pin Adapter get loose after hundreds of insertions, causing power interruption and overheating. For long-term export orders, check aging reports and verify performance decay data of Conversion Pin Adapter after long power cycles.

4. Regional Recommendation for Conversion Pin Adapter

EU market: EU style Conversion Pin Adapter. UK market: UK Conversion Pin Adapter with safety shutters. North America: US Conversion Pin Adapter. Australia & New Zealand: AU Conversion Pin Adapter. Multi-country shipments can adopt interchangeable Conversion Pin Adapter kits to simplify inventory.

Conclusion

This article explains definitions, real electrical and mechanical parameters of Conversion Pin Adapter, sorts out procurement mistakes and regional application plans. As supporting parts for cross-border goods, safety, plug life and aging resistance of Conversion Pin Adapter directly affect product compliance. Buyers should request full test reports of Conversion Pin Adapter for sample verification. Contact SenShuQiang for procurement and customization inquiries.

Sources：

1.IEC 608841 General safety standard for plugs and socketoutlets for household and similar purposes

2.UL 498 Standard for attachment plugs and receptacles

3.EN 50075 Interchangeable plugin systems for lowvoltage power supplies
