Abstract

For overseas electronic product shipments, mains adaptation and energy efficiency compliance are core market access conditions. A qualified Charger is the foundation for products to enter overseas markets. The energy efficiency, voltage adaptation range and stability of the Charger directly determine terminal certification pass rates and service life. Foreign trade enterprises must select standard Charger products to avoid trade risks such as customs clearance failure.

I. Core Electrical Adaptation Parameters

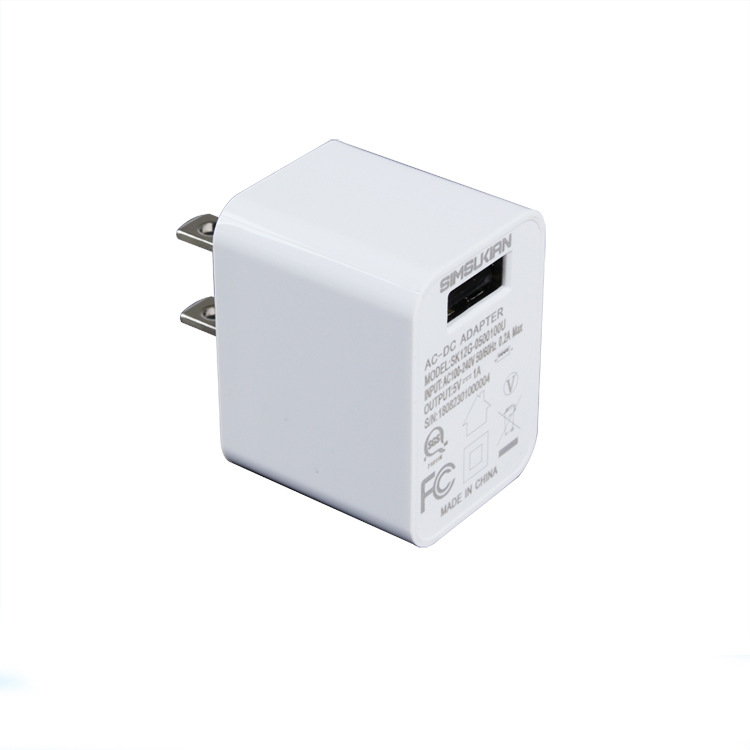

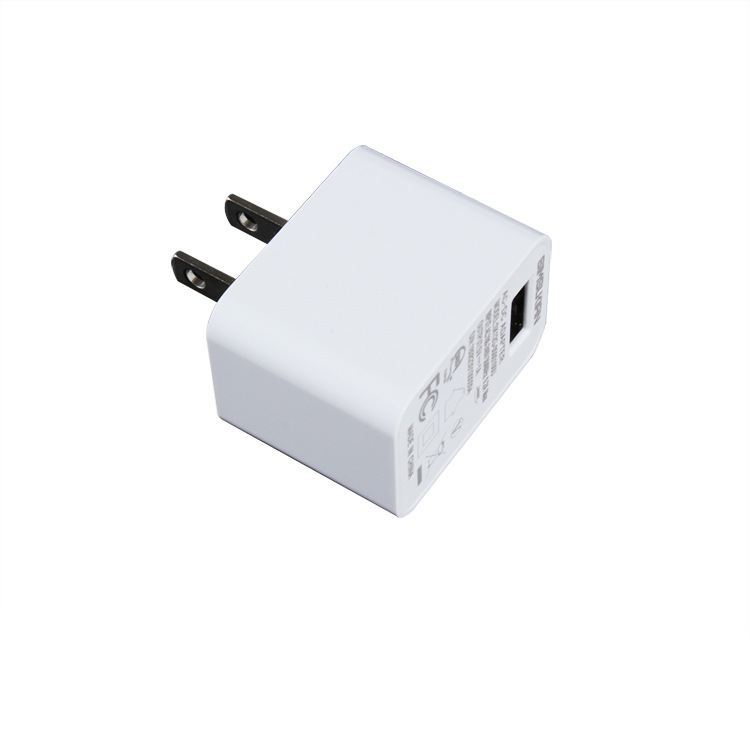

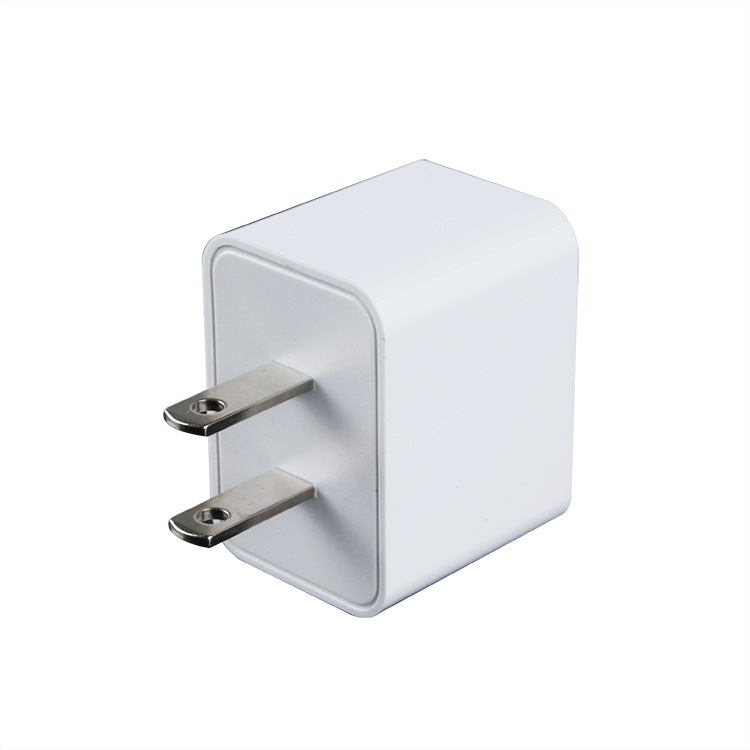

1. This Charger adopts universal AC100-240V wide voltage input, compatible with 50Hz and 60Hz dual global grid frequencies, with a rated input current of 0.8A and ±10% grid fluctuation tolerance. It adapts to mains environments in Europe, America, Southeast Asia and Australia without external transformers.

2. The Charger provides DC12V 2.5A output with 30W rated power and 88% full-load efficiency, fully compliant with Level VI energy efficiency standards and EU (EU) 2019/1782 regulations. Its no-load power consumption is lower than 0.1W, meeting overseas low-carbon energy-saving requirements.

3. With output ripple ≤120mVp-p and full-condition voltage deviation within ±5%, the Charger delivers excellent voltage stability, supplying pure power for precision chips of monitoring, industrial control and smart home devices, preventing crash and data errors caused by voltage fluctuation.

4. The Charger uses isolated switching power topology with reinforced insulation between primary and secondary sides, isolating pulse interference from the grid and protecting loads from surge pulses.

II. Environmental & Operating Performance

1. The Charger operates from 0℃ to 40℃ and can be stored from -20℃ to 70℃, with 20%-80% non-condensing humidity. It withstands high temperature, high humidity during sea freight and temperature changes in land transport without component aging or performance loss.

2. The Charger adopts fully enclosed dust-proof and moisture-proof construction, suitable for commercial, household and light industrial scenarios. It supports 7×24h continuous light-load operation for unattended overseas terminals.

3. The Charger undergoes high-low temperature cycling and long-time full-load aging tests before delivery. Stable output and consistent batch quality satisfy large-volume foreign trade orders.

4. The Charger housing uses heat-resistant modified plastic with strong anti-aging performance, resisting yellowing and cracking for long-term shelf storage in overseas retail markets.

III. Foreign Trade Selection & Compliance Notes

1. When selecting the Charger for foreign trade projects, reserve around 20% power margin to avoid continuous full-load operation, slowing aging of capacitors and transformers and extending equipment service life.

2. The Charger meets EN55032 Class B EMC and EN61000 immunity standards. It will not interfere with wireless signals or video transmission and helps terminals pass EMC certification smoothly.

3. The Charger supports custom plugs for US, EU, UK and Australia. Cable length, DC connector and housing printing can be modified to match regional sockets and custom device requirements.

4. The Charger all test reports and certificates can be issued in English for customer factory audits and third-party sampling inspection, lowering communication costs.

Conclusion

Featuring global wide voltage compatibility, high efficiency, low standby power and high reliability, this Charger is an ideal power accessory for exported small & medium electronic devices.

Contact Sen Shu Qiang for samples, parameter adjustment and full certification documents to get your custom power solution.

Sources:

1.IEC 62368-1:2018

2.(EU) 2019/1782

3. EN 55032:2015
