Abstract

The detachable pin structure of a convertible plug power adapter imposes higher certification requirements; pin modules need independent verification. Main circuits and each pin module of the convertible plug power adapter separately meet target market safety standards. This convertible plug power adapter covers pin dimensions, certification marks and creepage distance parameters, helping products pass UL, CE, UKCA and export smoothly.

1. Multi-Country Safety Standard Coverage

The main unit of the convertible plug power adapter is designed to IEC62368 and covers multiple target markets. The US version of the convertible plug power adapter obtains UL/ETL, while the EU version passes CE-LVD. The UK version of the convertible plug power adapter meets UKCA, and the AU version corresponds to RCM.

2. Independent Pin Module Certification

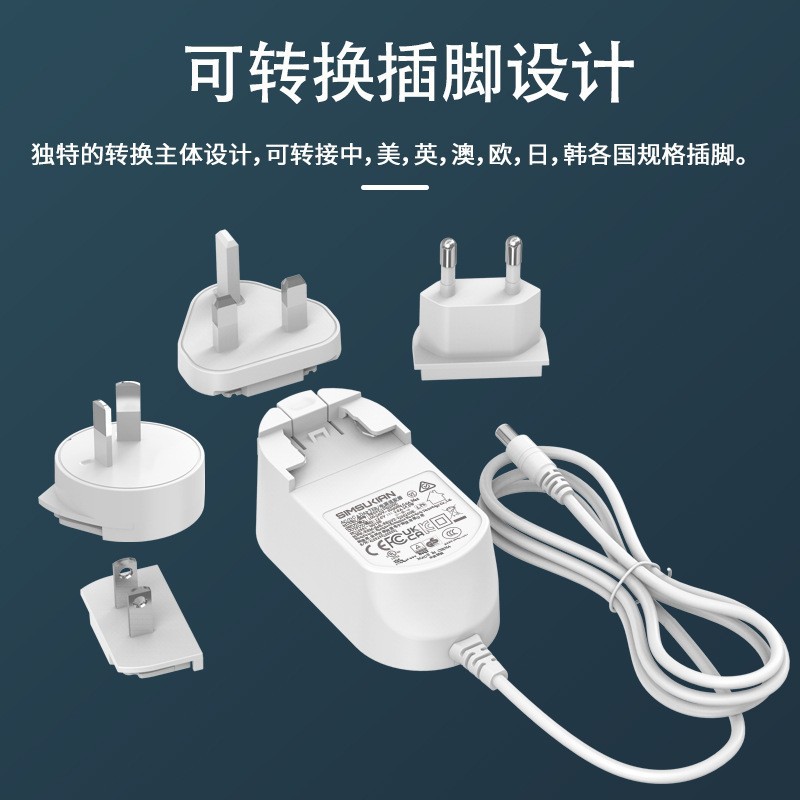

Each pin module of the convertible plug power adapter participates in certification as an independent part; pin dimensions and structure meet target country socket standards. Insertion torque and pin length of the convertible plug power adapter are verified accordingly. Lock structure between pin and host of the convertible plug power adapter is assessed as a whole.

3. Pin Geometric Dimension Parameters

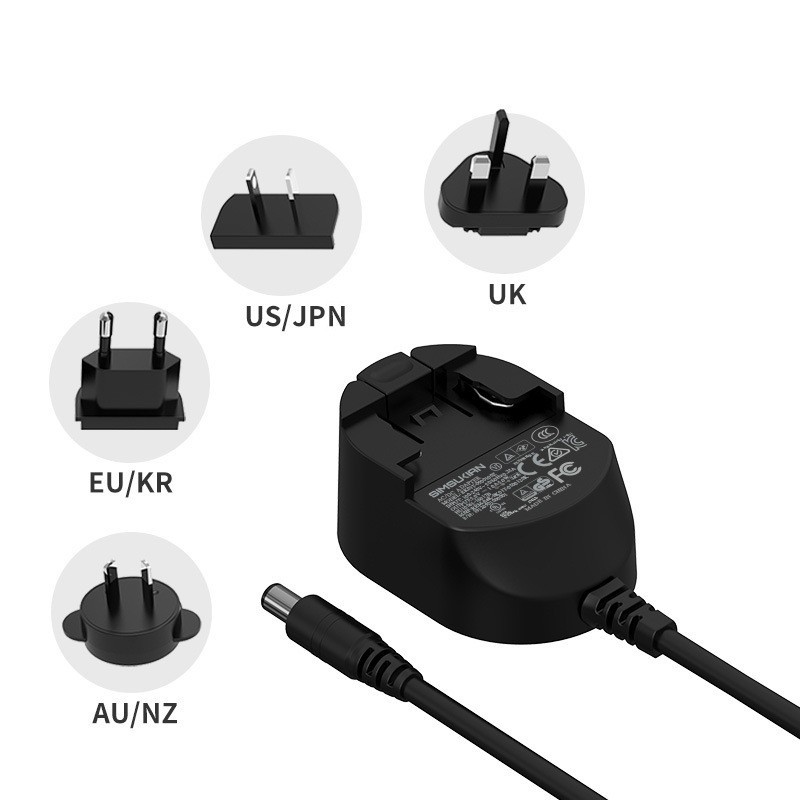

The convertible plug power adapter US pin is flat parallel pins with grounding hole, EU pin is dual cylindrical, UK pin carries a fuse. Diameter, spacing and length of each pin of the convertible plug power adapter meet local standard tolerances. Surface plating of the convertible plug power adapter meets corrosion and conduction requirements.

4. Certification Marks and Documents

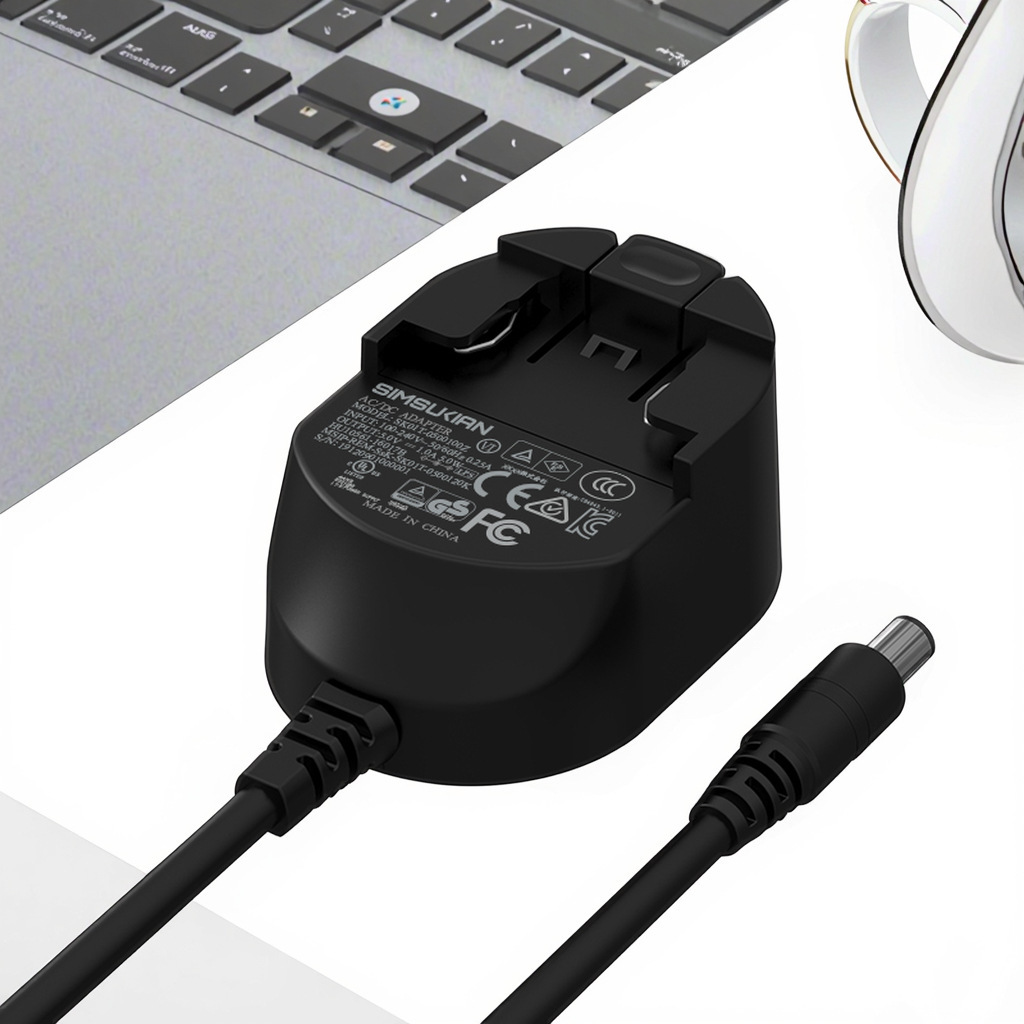

Housing of the convertible plug power adapter must print certification marks including UL, CE, UKCA, RCM. The convertible plug power adapter comes with instructions and safety notices in corresponding languages. Certification documents of the convertible plug power adapter support customs inspection.

5. Value of One-Pass Multi-Country Access

By planning a certification matrix in advance, the convertible plug power adapter avoids repeated testing and shortens time-to-market. A complete certification system lowers customer certification cost.

Conclusion

With complete multi-country certification coverage, the convertible plug power adapter helps products enter overseas markets at once. To obtain certificate lists of each certified convertible plug power adapter, contact Simsukian.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety standard

2. DOE Level VI External Power Supply Standard (US)

3. IEC 63002 Interoperability specifications for external power supplies
