Abstract

Mechanical strength tests verify structural stability of Conversion Pin Adapter and prevent accidental pin drop-off. This article explains tensile test, torque test and drop test procedures of Conversion Pin Adapter, with 60N tension and 1.2m drop height parameters. It analyzes failure modes during transport and assembly, helping overseas engineers read mechanical reports of Conversion Pin Adapter.

1. Importance of Mechanical Strength Test for Conversion Pin Adapter

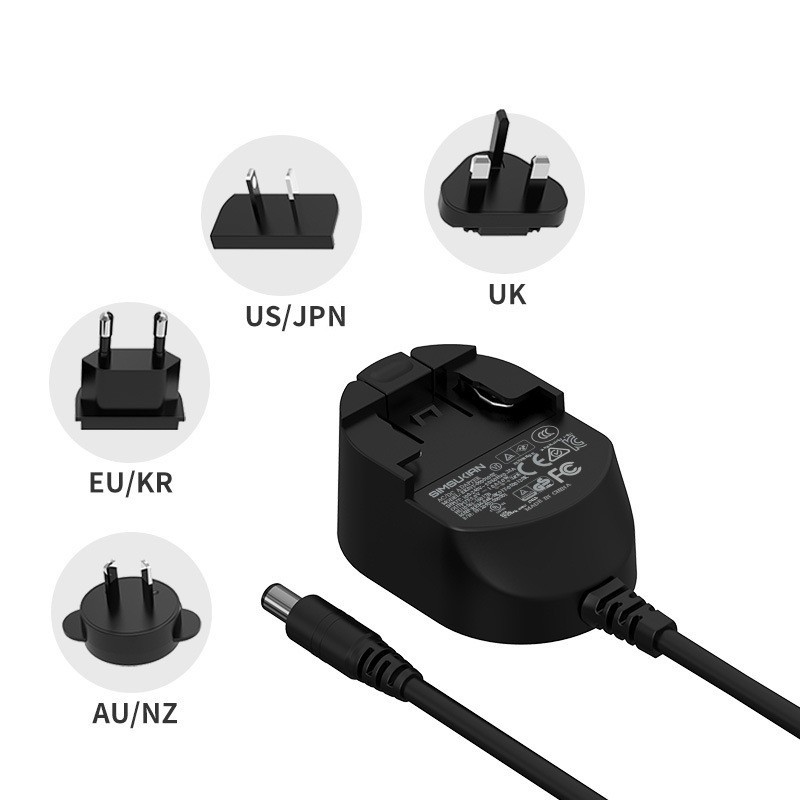

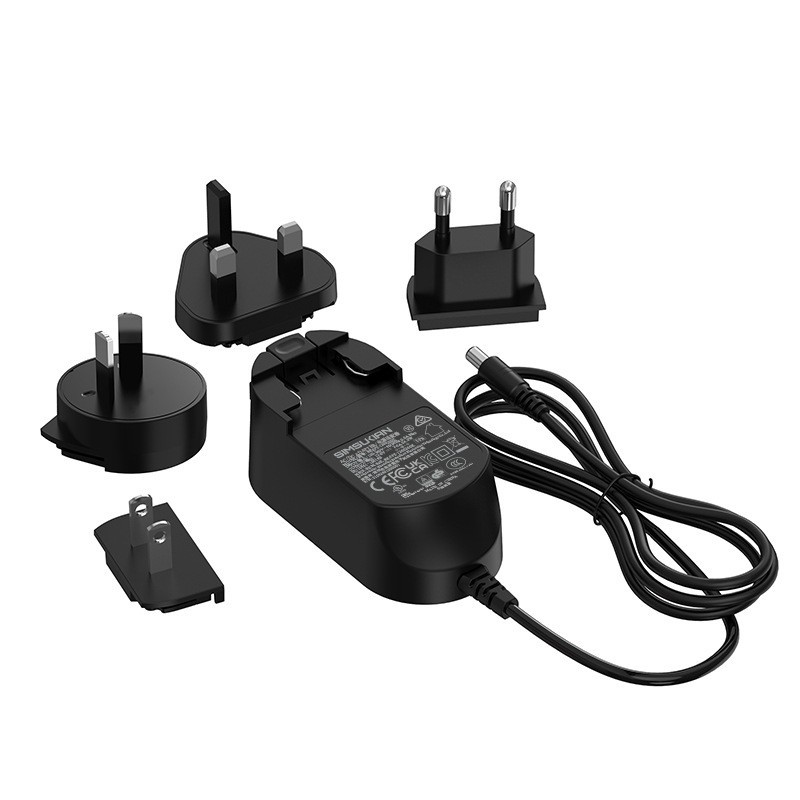

Conversion Pin Adapter are detachable power connectors. They bear pulling, twisting and dropping force during installation and transport. If Conversion Pin Adapter have weak structure, pin modules fall off and expose live metal parts, causing electric shock risks. Overseas safety standards set mandatory mechanical requirements for Conversion Pin Adapter.

Many low-cost Conversion Pin Adapter look intact, but weak molded clips break under tension or drop. Bulk shipments may trigger safety hazards and product recalls. Mechanical strength test is essential for sample evaluation of Conversion Pin Adapter.

2. Standard Mechanical Test Parameters of Conversion Pin Adapter

Tensile test: apply static 60N pulling force on assembled Conversion Pin Adapter for 60 seconds; pin module shall not separate. Torque test: apply 1.2N·m torque on pins, no housing crack or loose pins of Conversion Pin Adapter.

Drop test: drop Conversion Pin Adapter freely from 1.2m onto hard concrete floor once per side. No housing break after test, electrical performance remains normal, contact resistance ≤20mΩ.

Plug durability ≥10,000 cycles, 72h full-load aging, 500 thermal cycles. Re-run tensile test after all aging procedures; Conversion Pin Adapter still pass 60N tension requirement. Housing UL94 V0, AC3000V withstand voltage, insulation resistance ≥100MΩ.

3. Common Mechanical Failure Modes of Conversion Pin Adapter

First, clip fracture in tensile test and pin module separates from main body of Conversion Pin Adapter. Second, internal spring displacement under torque test leads to poor contact of Conversion Pin Adapter. Third, housing crack after drop test and live metal exposure, resulting in failure.

Some Conversion Pin Adapter pass tests when brand new, but plastic degrades after thermal cycles and fails tensile test. Testing only new samples cannot reflect long-term mechanical reliability of Conversion Pin Adapter.

4. Report Verification Tips for Mechanical Test of Conversion Pin Adapter

Check mechanical reports of Conversion Pin Adapter, confirm tensile, torque and drop tests are covered, preferably with retest data after aging. Reports only tested on brand-new samples have limited reference value. Overseas certification bodies focus on mechanical test records when reviewing documents of Conversion Pin Adapter.

Buying engineers can do simple manual pulling check for Conversion Pin Adapter samples, but formal third-party lab reports are required for full evaluation.

Conclusion

Mechanical strength test is the core method to evaluate structural safety of Conversion Pin Adapter. This article introduces tensile, torque and drop test procedures and measured parameters of Conversion Pin Adapter, sorts out typical failure modes under external force. Do not only inspect appearance; verify full mechanical data and confirm stable strength before and after aging. Contact SenShuQiang for procurement and customization inquiries.

Sources：

1.IEC 60884-1 Tensile, torque and drop mechanical tests for plugs

2.IEC 60068-2-31 Environmental testingfree fall drop test

3.IEC 60512-2-2 Connectorstensile load mechanical test
