Abstract

A wall plug power adapter is an AC-DC power unit that plugs directly into wall outlets without an external base. The wall plug power adapter adopts primary side feedback switching topology to convert global mains power stably. This wall plug power adapter integrates OVP, OCP, SCP, OTP protections. Complete technical parameters cover I/O, environment and reliability for cross-border electronic equipment.

1. Working Principle of Wall Plug Power Adapter

A wall plug power adapter is an integrated wall-mounted switching power supply converting AC mains to regulated DC output. Different from desktop power supplies, the wall plug power adapter combines circuit board, transformer and plug housing in one unit to save installation space. The wall plug power adapter accepts universal 100–240VAC input at 50/60Hz, max input current 0.6A and inrush current limited below 20A to handle grid fluctuation globally.

2. Core Electrical Technical Parameters

The wall plug power adapter works in constant voltage & constant current mode, with multiple output options:5V,9V,12V,15V,24V. Output ripple & noise is limited under 120mV, load regulation ≤±5%, line regulation ≤±1%. The wall plug power adapter minimum hold-up time reaches 20ms to avoid sudden device shutdown. It meets DOE Level VI and EU ErP energy requirements; the wall plug power adapter no-load power consumption is less than 0.075W to cut standby power waste.

3. Environmental & Reliability Parameters

The wall plug power adapter operates from 0℃ to +40℃; storage temperature ranges -20℃ ~ +85℃, relative humidity 5%–90% non-condensing. The housing uses V0 flame-retardant PC plastic. The wall plug power adapter whole unit achieves MTBF of 50,000 hours. The wall plug power adapter undergoes 4-hour full-load burn-in test and 3000VAC hipot insulation test to reduce long-term failure risk.

4. Safety Protection & Compliance

The wall plug power adapter integrates four hardware protections: OVP over-voltage, OCP over-current, SCP short-circuit, OTP over-temperature. Once parameters exceed thresholds, the wall plug power adapter automatically cuts off output and auto-recovers after faults are cleared. The wall plug power adapter can obtain UL, ETL, CE, UKCA, FCC, RCM certifications and comply with IEC62368 for North America, EU and Australian market access.

5. Typical Application Scenarios

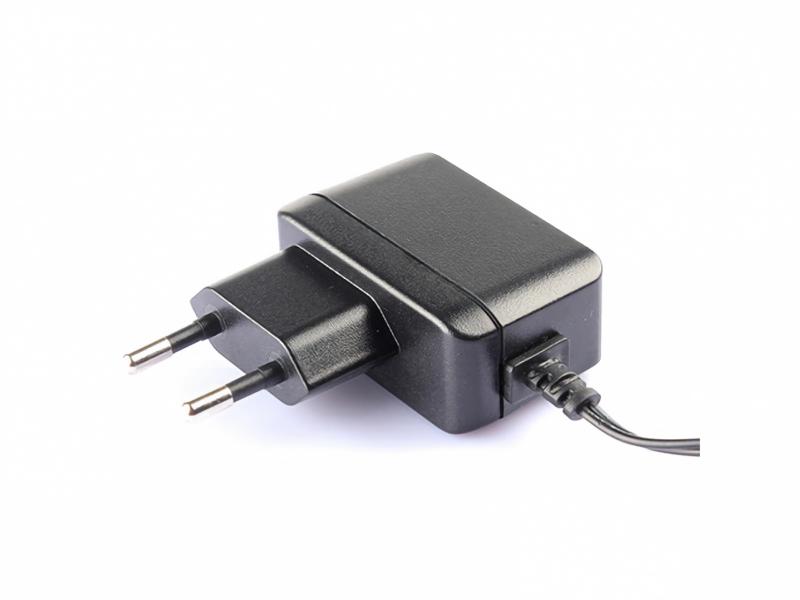

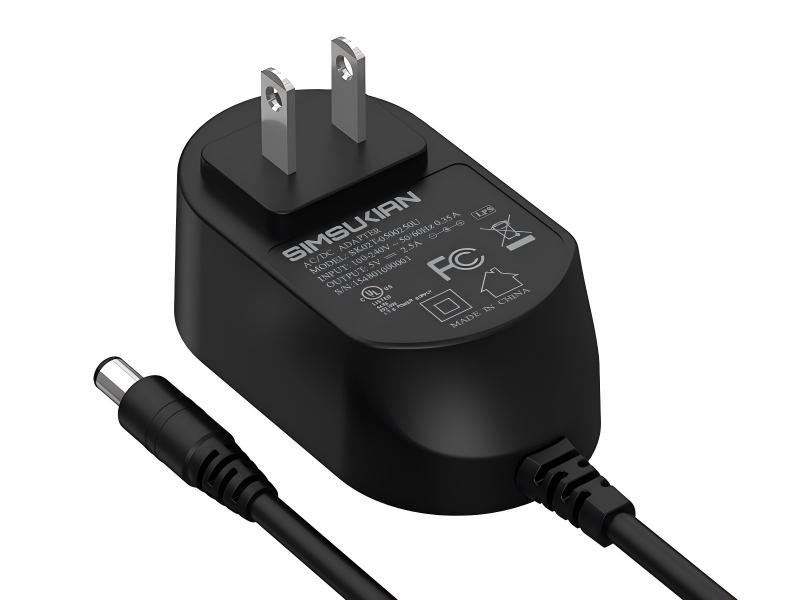

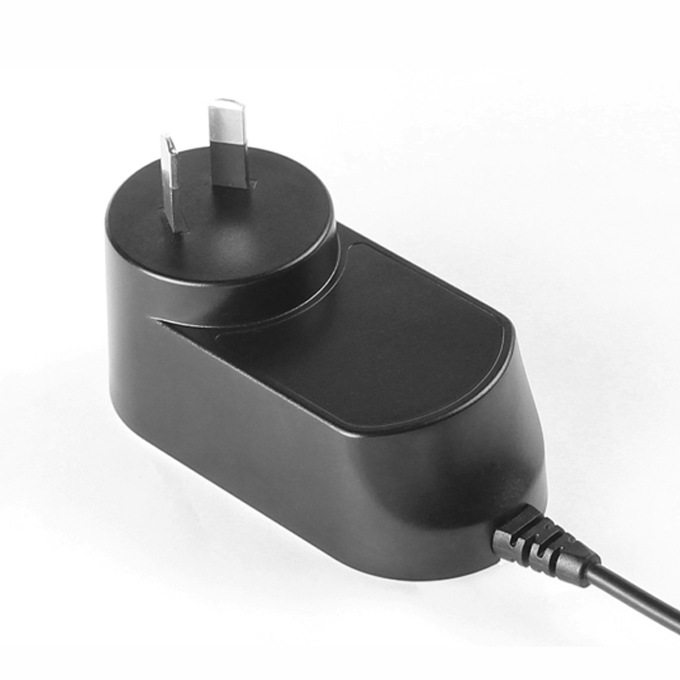

The wall plug power adapter powers security cameras, smart locks, IoT gateways, portable medical peripherals, LED strips and compact desktop sensors. Its compact all-in-one design reduces cable footprint for space-limited terminals. The wall plug power adapter supports fixed plug customization: US, EU, UK, AU types without extra travel adaptors.

Conclusion

The wall plug power adapter is the preferred power supply for cross-border consumer electronics and IoT devices, thanks to compact form, full protection and global energy certifications. If you need custom output voltage, power rating, plug type or housing color for your wall plug power adapter, please contact Simsukian to receive full sample test reports and tailored solutions.

References

1.IEC 62368-1 Audio/video, information and communication technology equipment safety standard: https://webstore.iec.ch/publication/63014

2.DOE Level VI External Power Supply Standard (US): https://www.energy.gov/eere/standards/external-power-supplies

3.IEC 63002 Interoperability specifications for external power supplies: https://webstore.iec.ch/en/publication/65636
