Abstract

A convertible plug power adapter is an integrated AC-DC power unit with replaceable pins, adapting to different country sockets without changing the whole unit. The convertible plug power adapter switches multiple pin types quickly via a slide-lock mechanism. This convertible plug power adapter covers global socket systems with identical internal circuits, including pin compatibility, lock strength and safety interlock parameters for cross-border electronic equipment.

1. Overall Structure of Convertible Plug Power Adapter

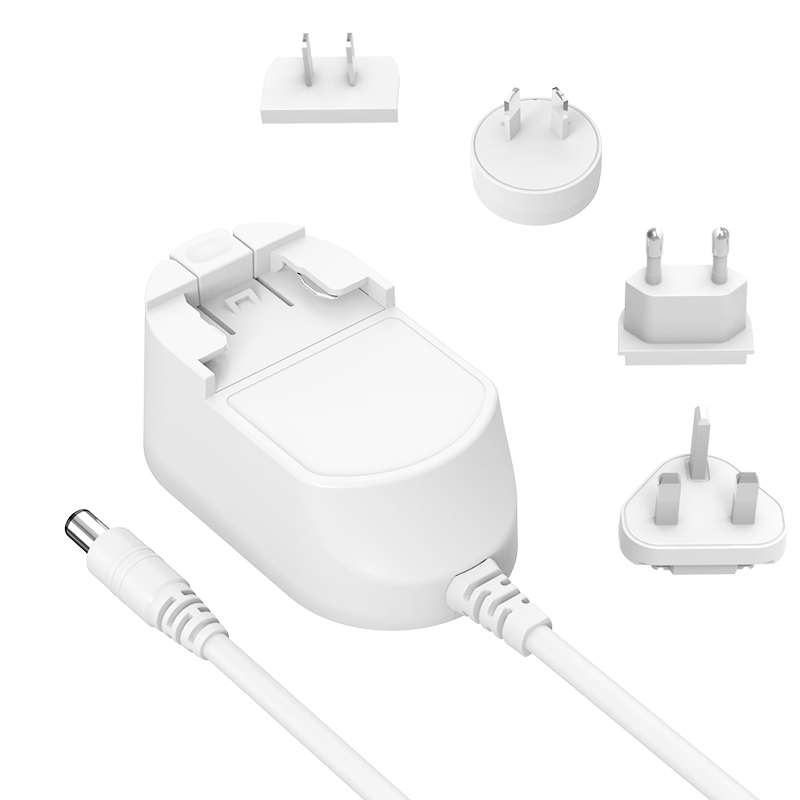

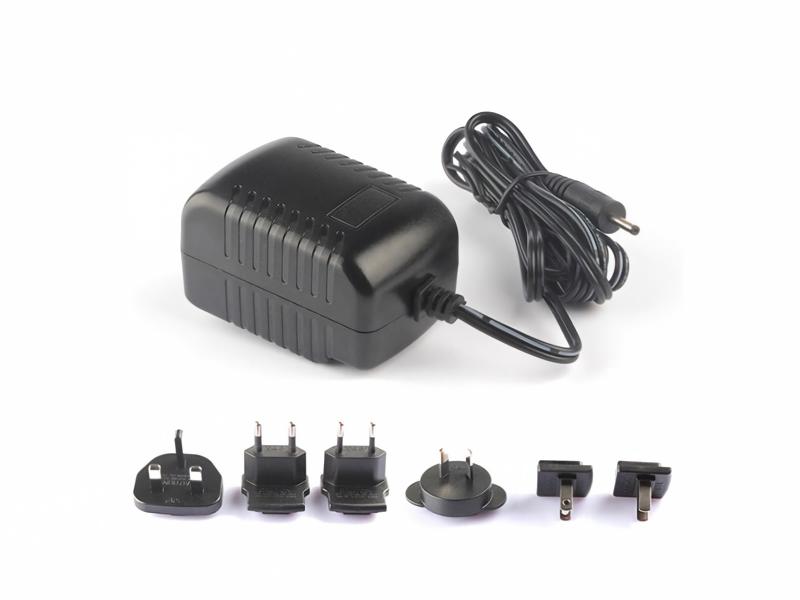

The convertible plug power adapter integrates switching circuit, transformer and detachable pin module into one unit; users only swap pin modules to fit different country sockets. The convertible plug power adapter sets a unified pin interface socket internally so different pin modules mount stably. Compared with fixed-pin versions, the convertible plug power adapter greatly reduces inventory variants and simplifies cross-border management.

2. Slide-Lock Mechanism Technical Parameters

The convertible plug power adapter adopts dual-slide plus snap double locking; the pin locks automatically when seated. Lock mechanism of the convertible plug power adapter withstands forward force ≥50N to prevent accidental pull-out during daily insertion and removal. Release button of the convertible plug power adapter must be pressed fully to extract pins, minimizing accidental operation.

3. Pin Compatibility Technical Parameters

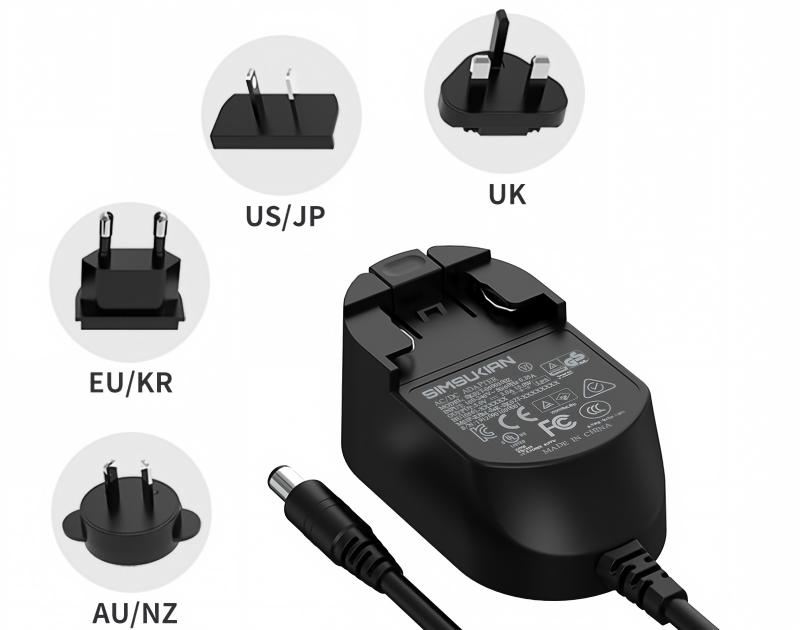

The convertible plug power adapter offers US, EU, UK, AU pin modules covering major overseas markets. After each pin module mates with the socket, contact resistance of the convertible plug power adapter stays within 50mΩ for stable high-current conduction. Dimensions of every pin version of the convertible plug power adapter meet target country socket standards without looseness.

4. Safety Interlock Technical Parameters

The convertible plug power adapter delivers no output when the pin module is unlocked, preventing energized insertion or removal. Once locked, internal contacts of the convertible plug power adapter conduct, linking mechanical and electrical states. The housing stays fully enclosed during pin replacement, blocking hand contact with live parts.

5. Cross-Border Application & Selection Value

A single convertible plug power adapter covers most regions worldwide, sharply cutting SKU count and storage cost. The convertible plug power adapter suits export e-commerce, travel goods and hotel rooms with multiple socket types. When selecting, prioritize lock strength and pin insertion life as two core parameters.

Conclusion

With interchangeable pins and unified circuits, the convertible plug power adapter is a flexible choice for cross-border power supply. Contact Simsukian for samples if you need a custom convertible plug power adapter.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety standard

2. DOE Level VI External Power Supply Standard (US)

3. IEC 63002 Interoperability specifications for external power supplies
