Abstract

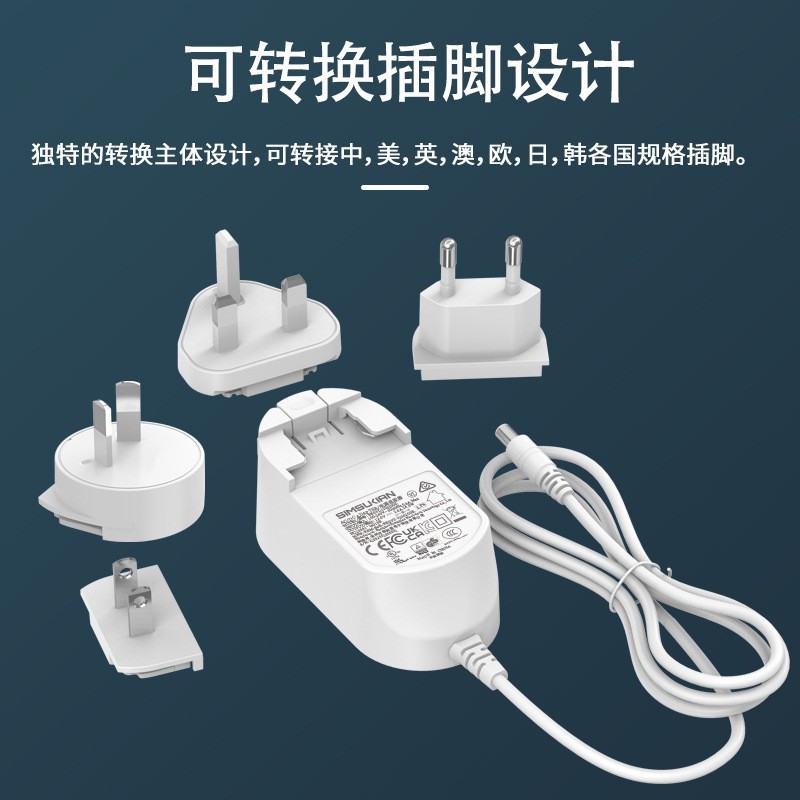

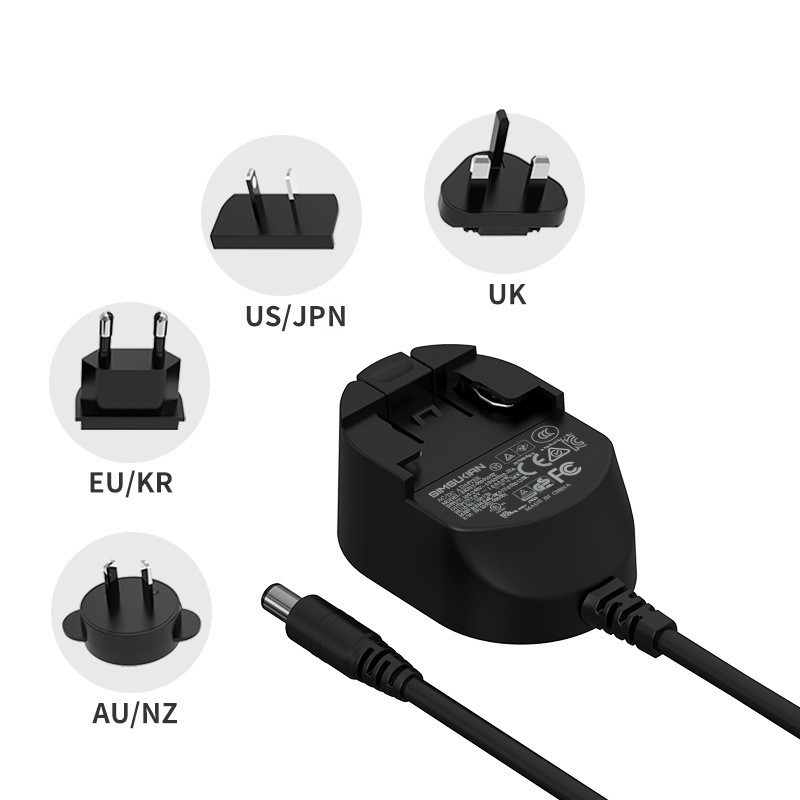

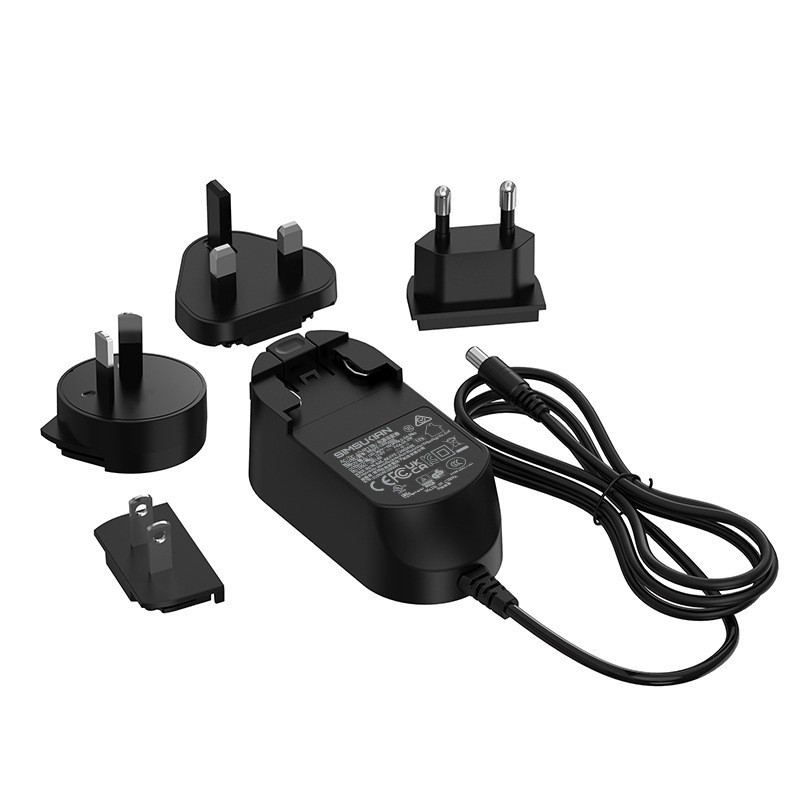

An interchangeable plug power adapter powers global electronics without replacing the unit. The interchangeable plug power adapter swaps US, EU, UK and AU pins for local sockets. This interchangeable plug power adapter keeps clearance and contact stable for cross-border use.

1. Mechanical Durability of Interchangeable Pins

Insertion cycle life is the defining feature distinguishing an interchangeable plug power adapter from fixed-pin adapters. A qualified interchangeable plug power adapter survives more than 5000 plug cycles without excessive play or enlarged gaps. This interchangeable plug power adapter supports US, EU, UK and AU pins; its snap-lock design pins cannot be pulled out by hand once seated, preventing dislodging during shipment vibration.

2. Clearance and Creepage Distance Control

Swappable pins change the internal insulation layout, yet the interchangeable plug power adapter keeps input-output clearance compliant with IEC62368 after every plug swap, with primary-secondary creepage distance above 6.4mm. The interchangeable plug power adapter uses high-elasticity phosphor bronze spring contacts with contact resistance under 8mΩ, limiting contact temperature rise within 25K under high current. Poor contact is the most common failure mode of an interchangeable plug power adapter, and contact material selection determines long-term reliability and batch consistency.

3. Universal Electrical and Energy Parameters

The interchangeable plug power adapter accepts 85–264VAC universal input at 50/60Hz, with common 5V, 12V and 24V outputs within ±5% tolerance. The interchangeable plug power adapter meets DOE Level VI and EU ErP rules with no-load power below 0.1W. Efficiency of the interchangeable plug power adapter stays consistent regardless of which plug is fitted, so end products can complete unified multi-region energy filing without efficiency drift between plug variants.

4. Split Certification Strategy and Inventory Value

The interchangeable plug power adapter allows separate certification of the main body and plug components, shortening multi-region certification cycles and test cost. Each plug variant passes regional safety testing while one main-body test record can be reused across markets. When selecting an interchangeable plug power adapter, buyers should confirm certificate binding between main body and plugs to avoid customs detention for uncovered plugs. Compared with a separate fixed-pin adapter for every country, the interchangeable plug power adapter sharply reduces SKU count and working capital tied up in warehouse stock.

Conclusion

When choosing an interchangeable plug power adapter for cross-border projects, verify cycle life, contact structure and split-certification setup. To review durability test reports and full plug safety configurations of the interchangeable plug power adapter, contact Simsukian for samples and certification documentation; this interchangeable plug power adapter can be configured with plugs for the target market.

References

1. IEC 62368-1 Audio/video, information and communication technology equipment safety

2. IEC 60884-1 Plugs and socket-outlets for household and similar purposes

3. DOE Level VI External Power Supply Efficiency Standard
