Abstract

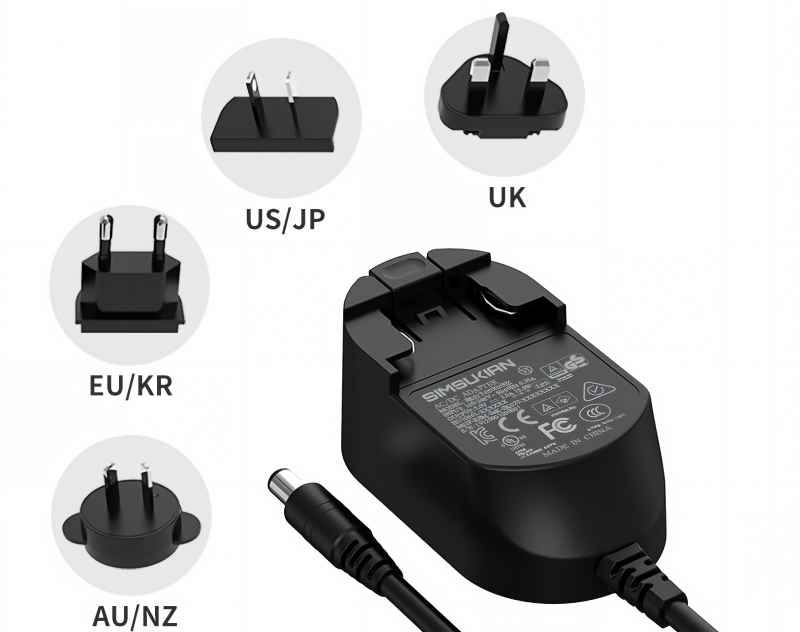

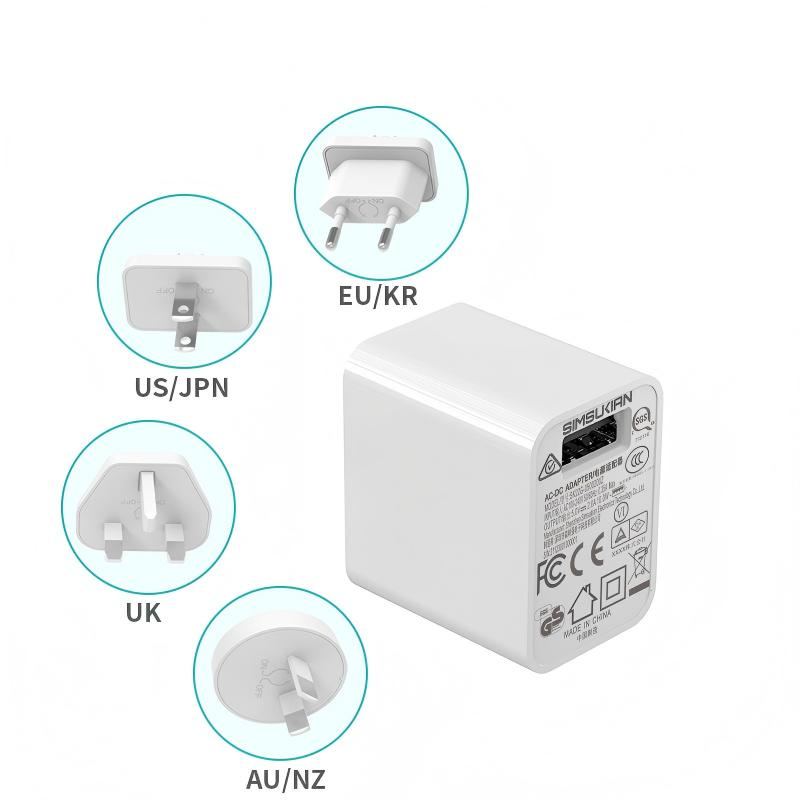

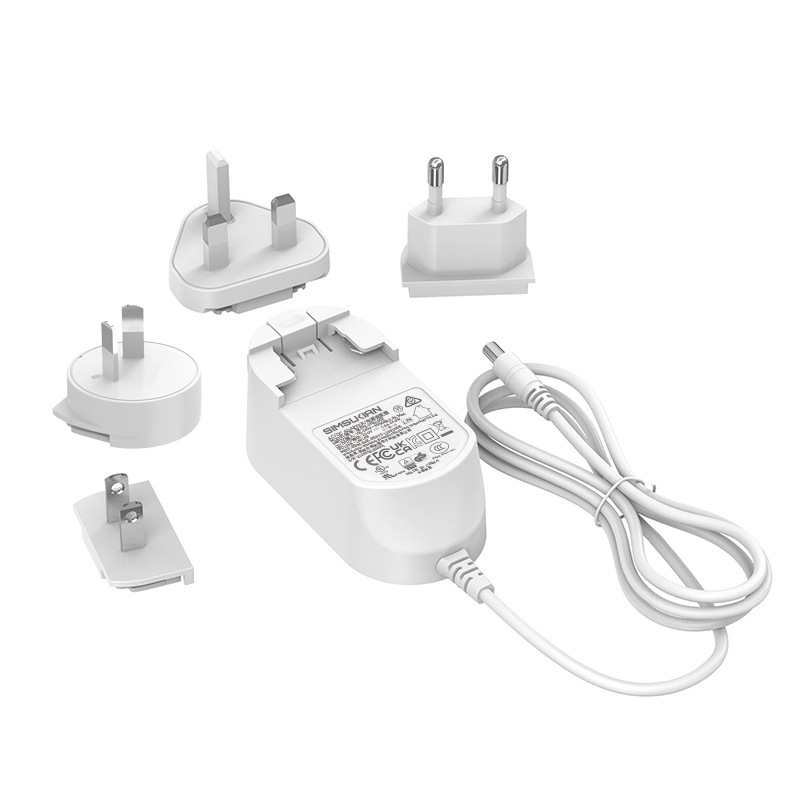

A convertible plug power adapter adopts a detachable pin structure where the lock mechanism and pin module cooperate. The convertible plug power adapter passes tens of thousands of insertion cycles with stable lock strength and contact resistance. This convertible plug power adapter covers insertion life, lock holding force, contact resistance and temperature rise parameters, ensuring reliable conduction after frequent pin changes for hotels and travel scenarios.

1. Lock Mechanism Durability Parameters

The lock mechanism of the convertible plug power adapter combines stainless steel spring and engineering plastic snap, still meshing normally after 50,000 lock and unlock cycles. Lock holding force of the convertible plug power adapter decays less than 15% after endurance testing, preventing pin looseness over long-term use. Unlock force of the convertible plug power adapter is designed for one-hand operation while resisting child access.

2. Insertion Endurance Technical Parameters

Pin module insertion life of the convertible plug power adapter reaches 30,000 cycles, far beyond daily use for frequent-swap scenarios. Plating on conductive contacts of the convertible plug power adapter does not peel during insertion, ensuring reliable conduction. Output parameters of the convertible plug power adapter show no drift after endurance testing.

3. Contact Resistance and Conduction Parameters

Contact resistance between pin and socket of the convertible plug power adapter is controlled within 40mΩ for extremely low voltage drop under high current. Gold-plated conductive contacts of the convertible plug power adapter resist oxidation and wear for stable long-term contact. Under full load, temperature rise of the convertible plug power adapter contacts stays within 30K to avoid thermal aging.

4. Fatigue and Environmental Tolerance

After -20℃ to 70℃ thermal cycling, locking and conduction performance of the convertible plug power adapter remain intact. After 72-hour salt spray exposure, contact surfaces of the convertible plug power adapter show no severe corrosion. The structure stays tight under vibration testing.

5. Value in High-Frequency Scenarios

With extremely long insertion life, the convertible plug power adapter suits hotel rooms, shared offices and frequent travelers. Reliable contact keeps the convertible plug power adapter stable for years of charging.

Conclusion

With high-durability locking and stable contact conduction, the convertible plug power adapter ensures reliable long-term operation in high-frequency scenarios. If you need a high-endurance convertible plug power adapter, contact Simsukian for endurance reports and samples.
